Gallery Of Homes: Kesler

Kesler residence in Gulf Breeze by Acorn Fine Homes Kesler residence in Gulf Breeze by Acorn Fine Homes Kesler residence in Gulf Breeze by Acorn Fine Homes artistic painting air leakage test Kesler stucco home in Gulf Breeze Kesler stucco home in Gulf Breeze

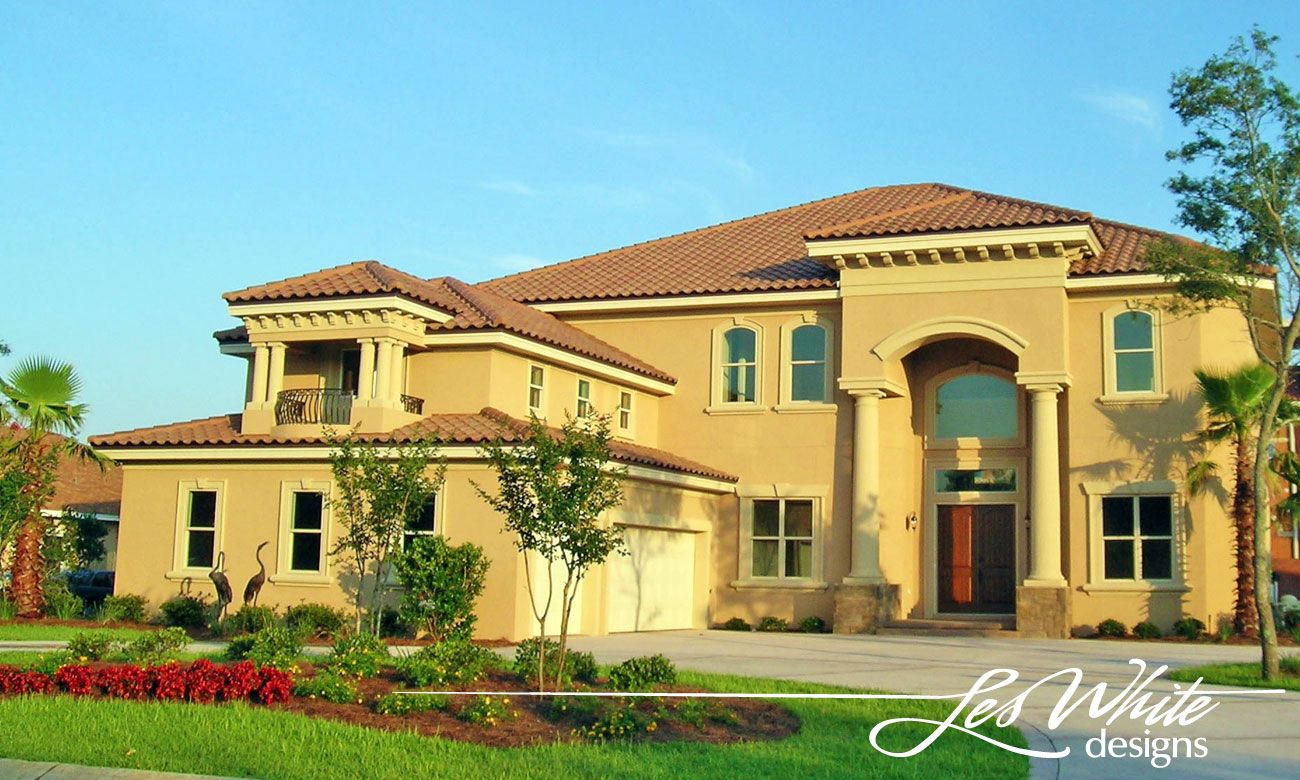

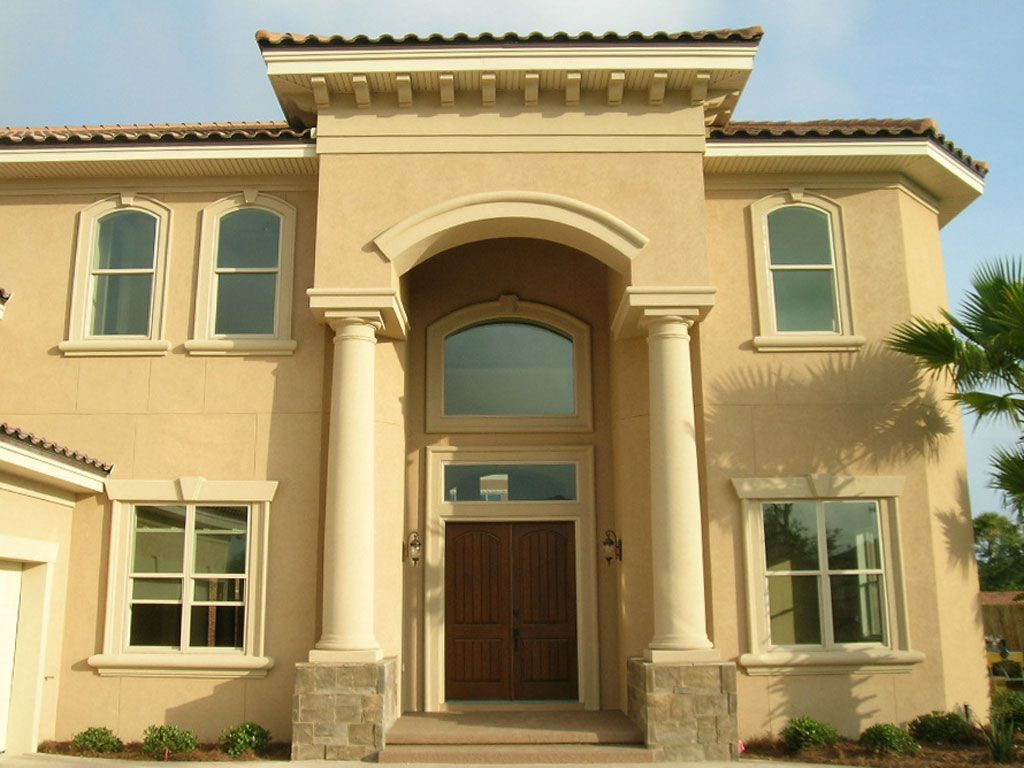

6087 SF, 8 months start to finish.

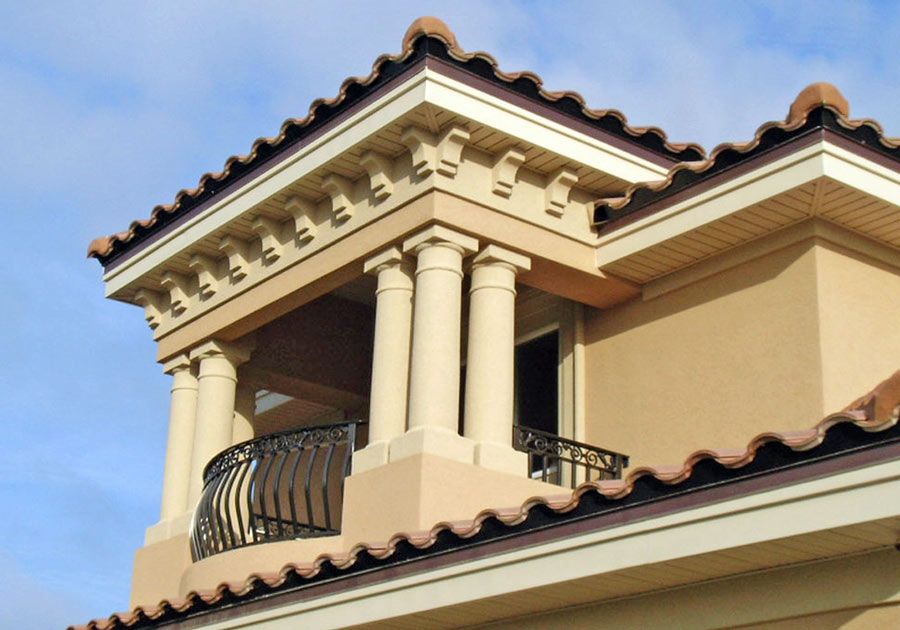

Balcony detail over the garage. Way cool!

Patti Schlotterlein paints a mouse in Ava's playroom.  See more examples of her work on her website.

Patti puts the finishing touches on a pair of lady bugs in a scene she painted around the owner's Snow White tapestry.

This is how ants move giant bugs.

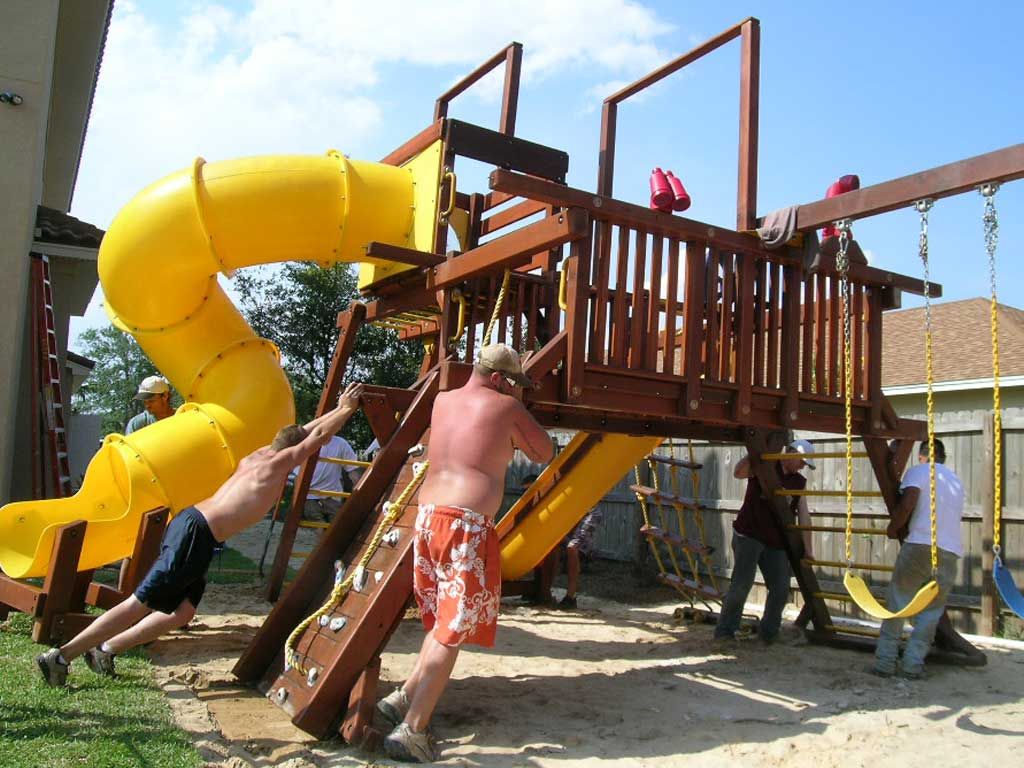

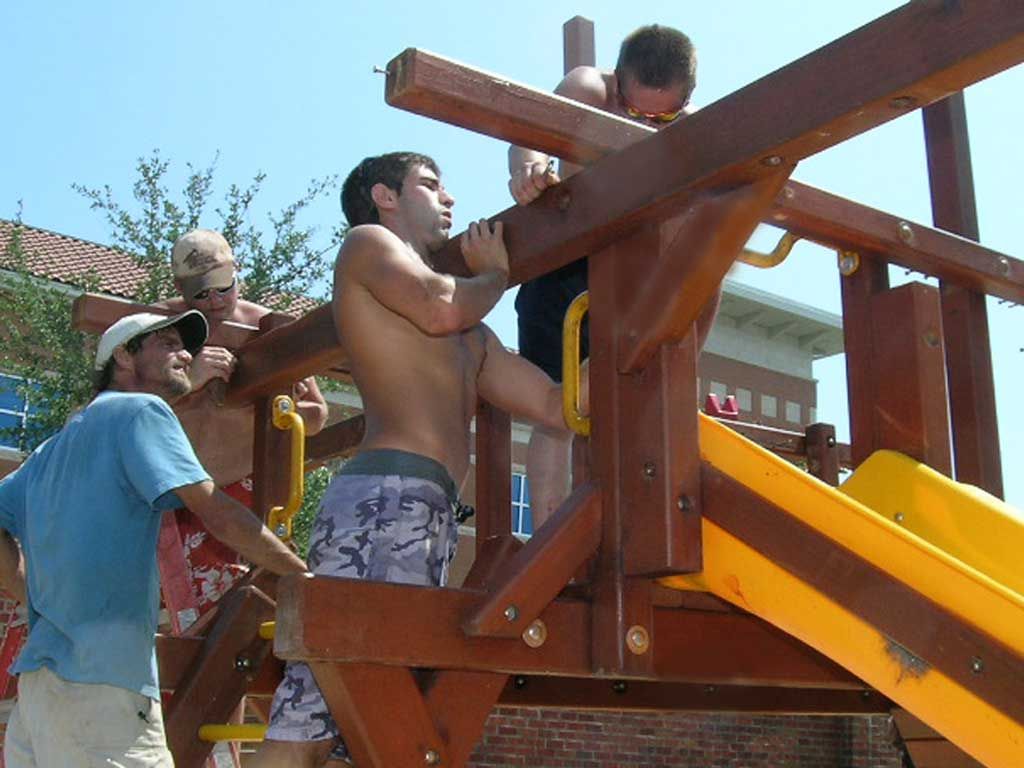

Keith, Brandon Josh, and Chaz assemble Ava's playground. I wish I had cool stuff like this in my yard when I was a kid.

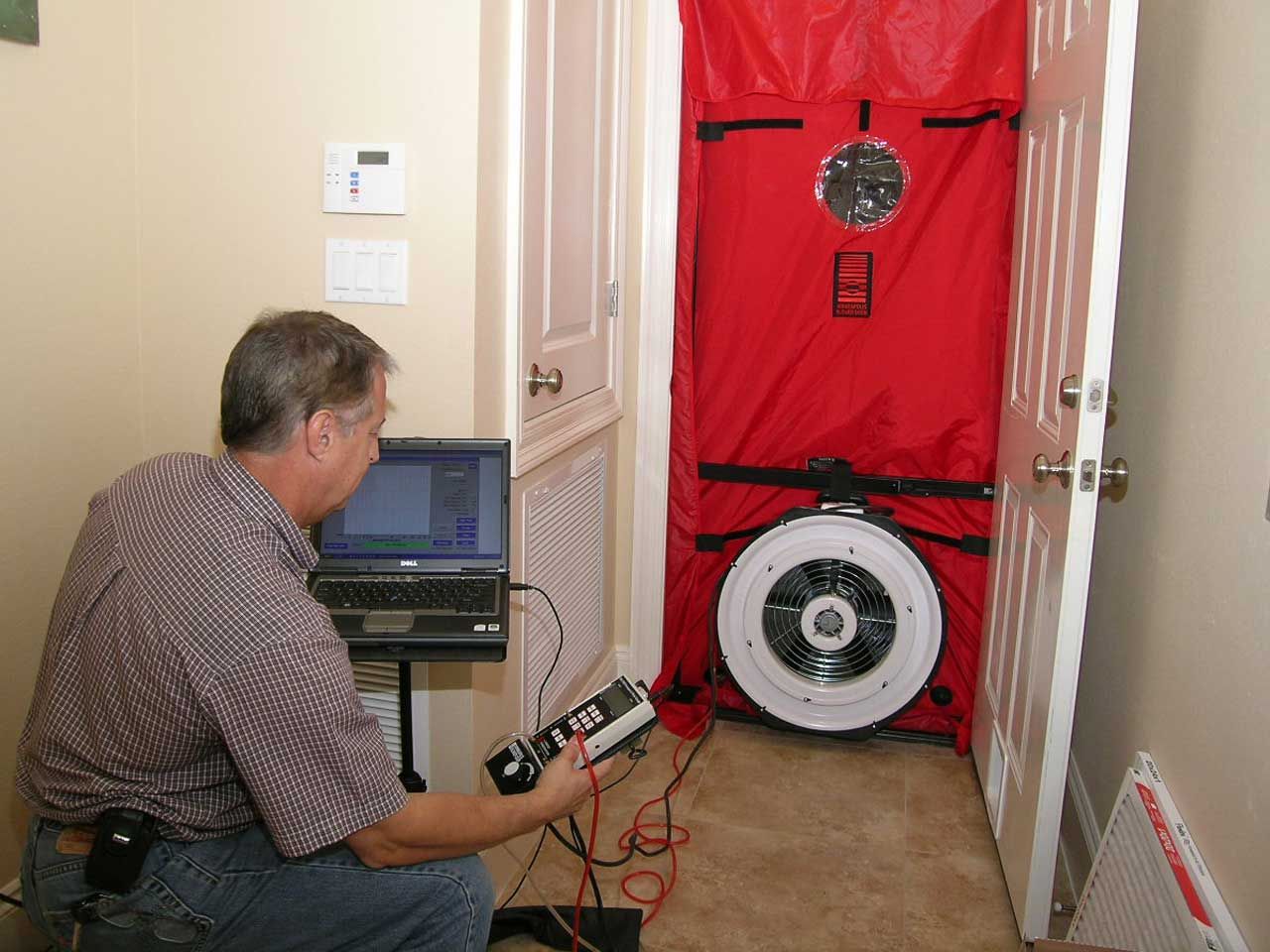

Joe Jones with Gulf Power has installed a blower door in one of the exterior door openings.  The blower door draws a vacuum on the home so that the air tightness of the home can be measured in terms of air changes per hour.  The test is run at 50 pascals of vacuum which simulates a 20 mph wind on all 4 sides of the building.  This test is a very important part of building a high performance energy efficient home.  It's the only way to know for sure how well our methods are working.  We test for success.

We tested at 1.98 air changes per hour.  We were almost off the chart!

These are the performance guidelines:

1.5 - 4 ACH = High Performance Home

4 - 7    ACH = Energy Efficient Home

8 - 12  ACH = Standard New Home

11 - 21 ACH = Standard Existing Home

18 - 35 ACH = Standard Older Home

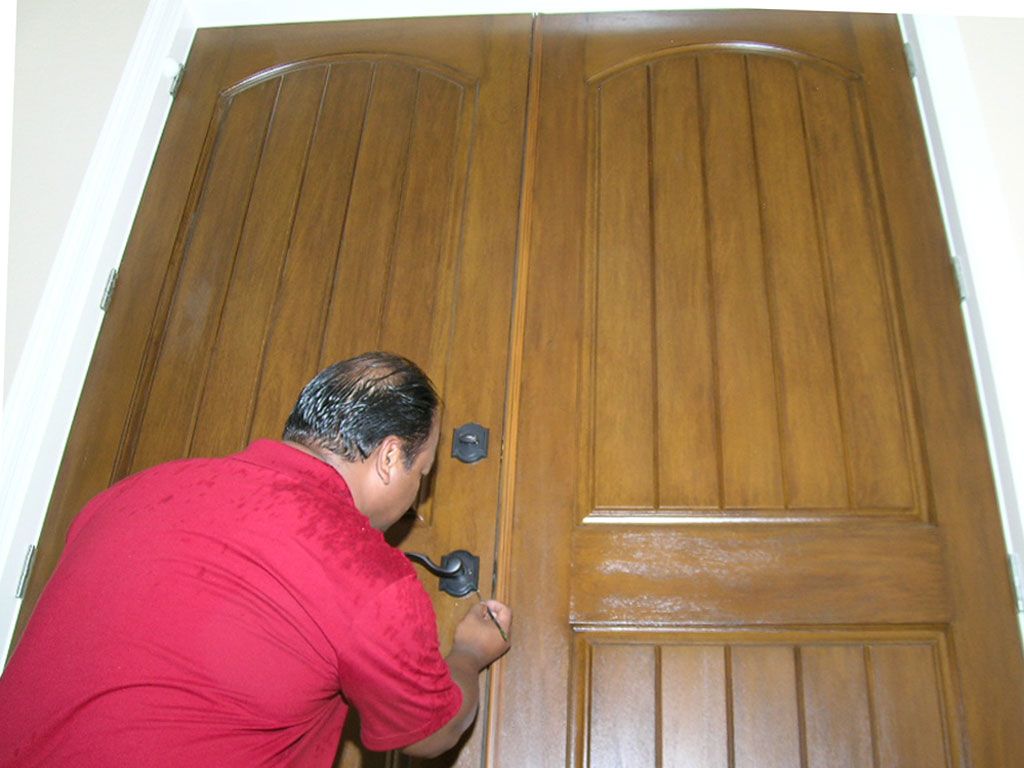

Jimmy with JQ, Inc. puts the finishing touches on the front door. This is a fiberglass door. Jimmy has stained and finished it to look like oak. His finish work is so good you don't really know it's fiberglass until you touch it. Jimmy applies his furniture finishing and restoration skills to creating durable stained fiberglass doors.

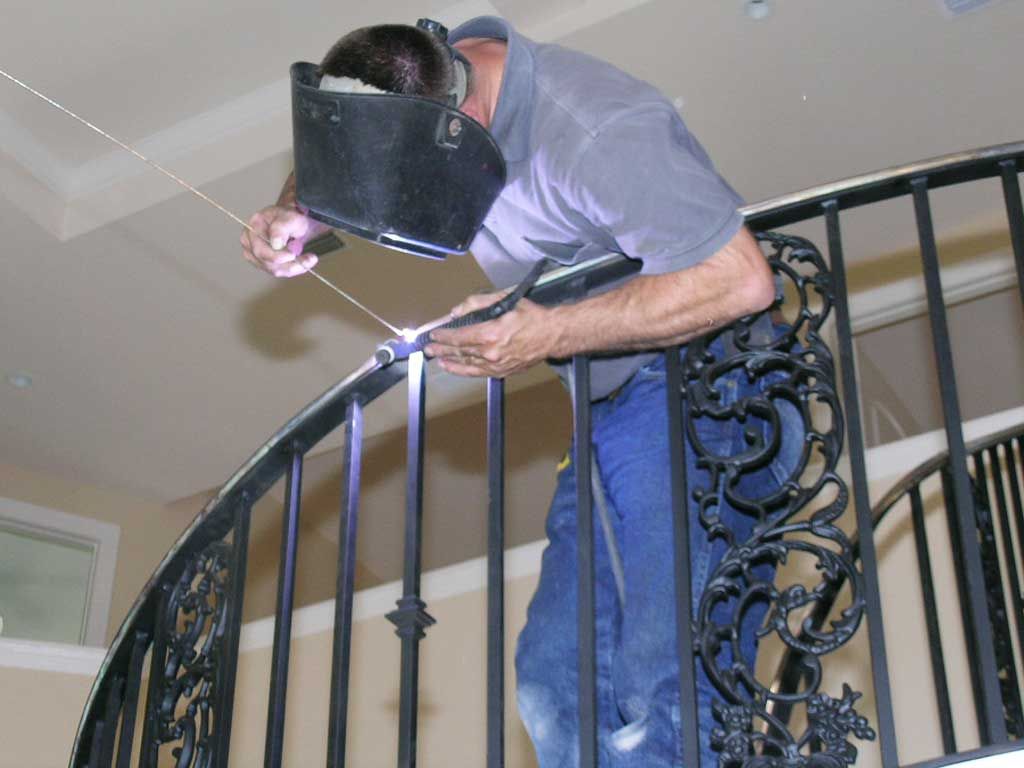

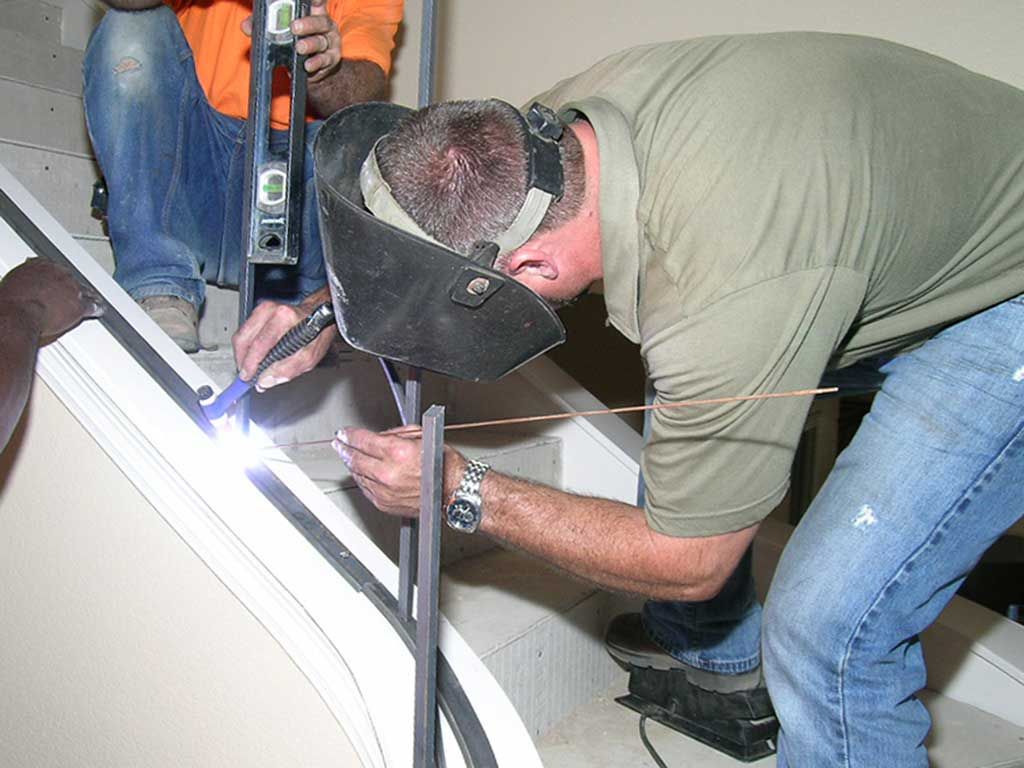

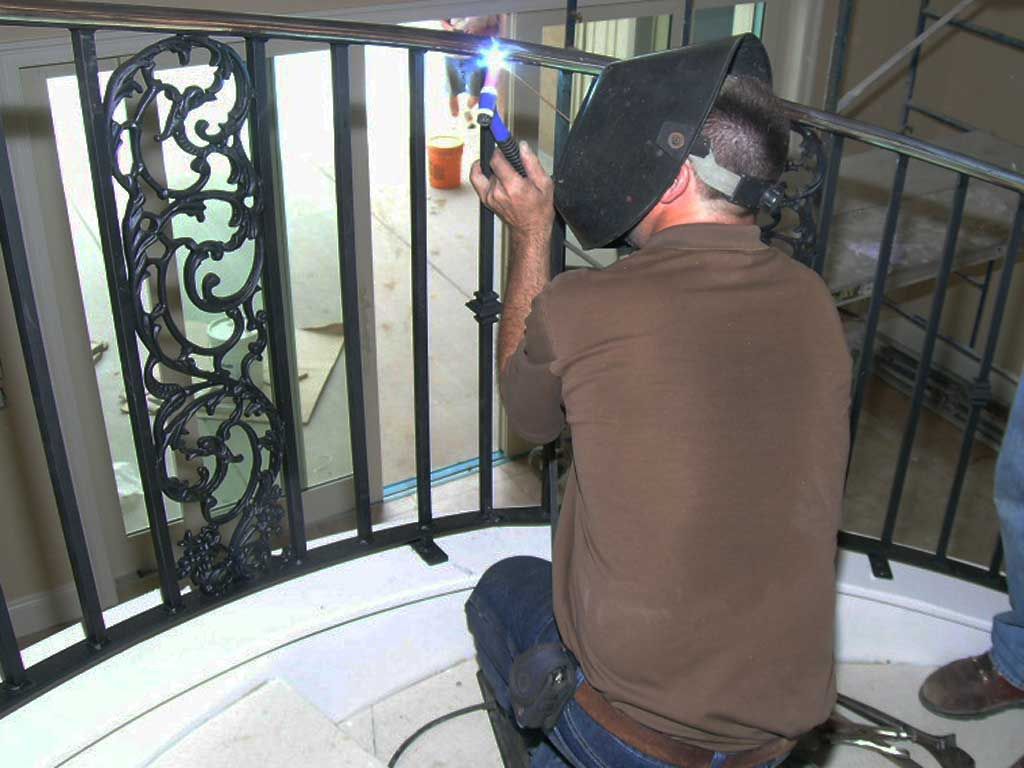

Tony with Brownsville Ornamental Ironworks welding the stair railing sections together.

Installing the LR stair railing

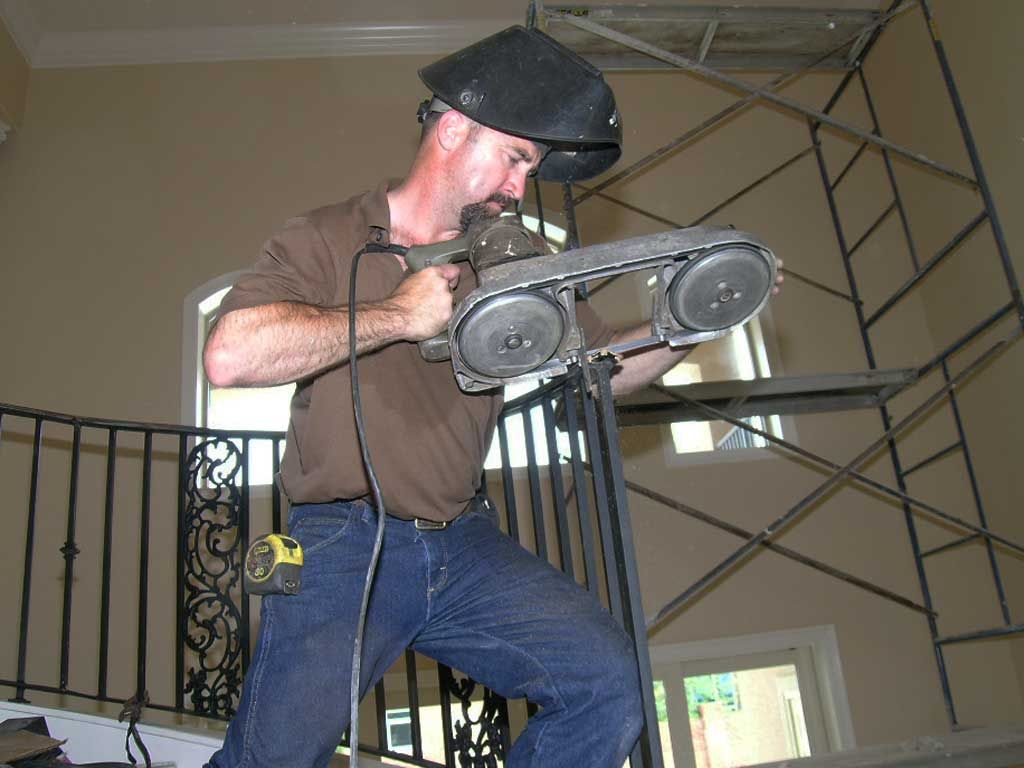

It's a little too long. No problem if you've got a giant electric hack saw.

Doug with Brownsville Ornamental Ironworks templating the stair railing. Doug bends the metal onsite to fit the curves in the stair case and welds the pickets in the plumb position. He takes these templates back to the shop and fabricates the railing to match the templates.

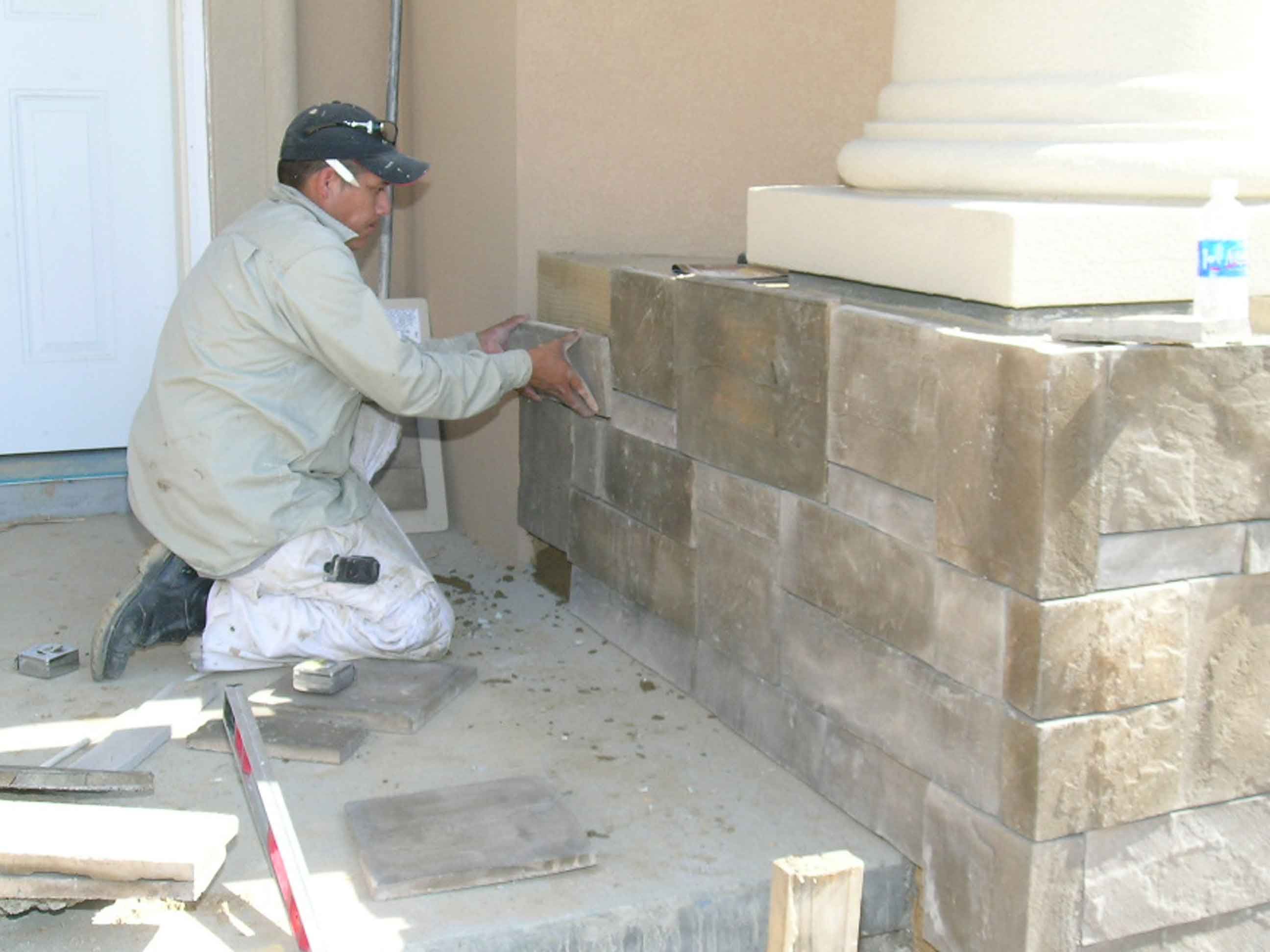

Setting the stone veneer on the front column pillars.

Jimmy with James Lenn Construction setting tile in the spa spill way.

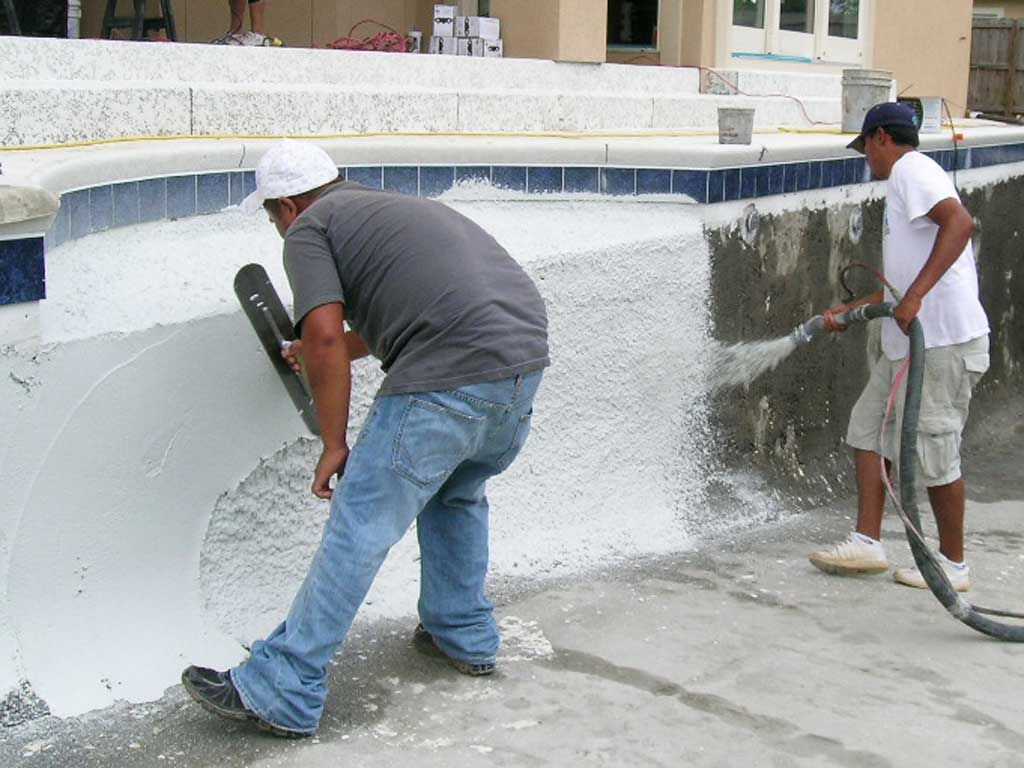

Plastering the pool shell.

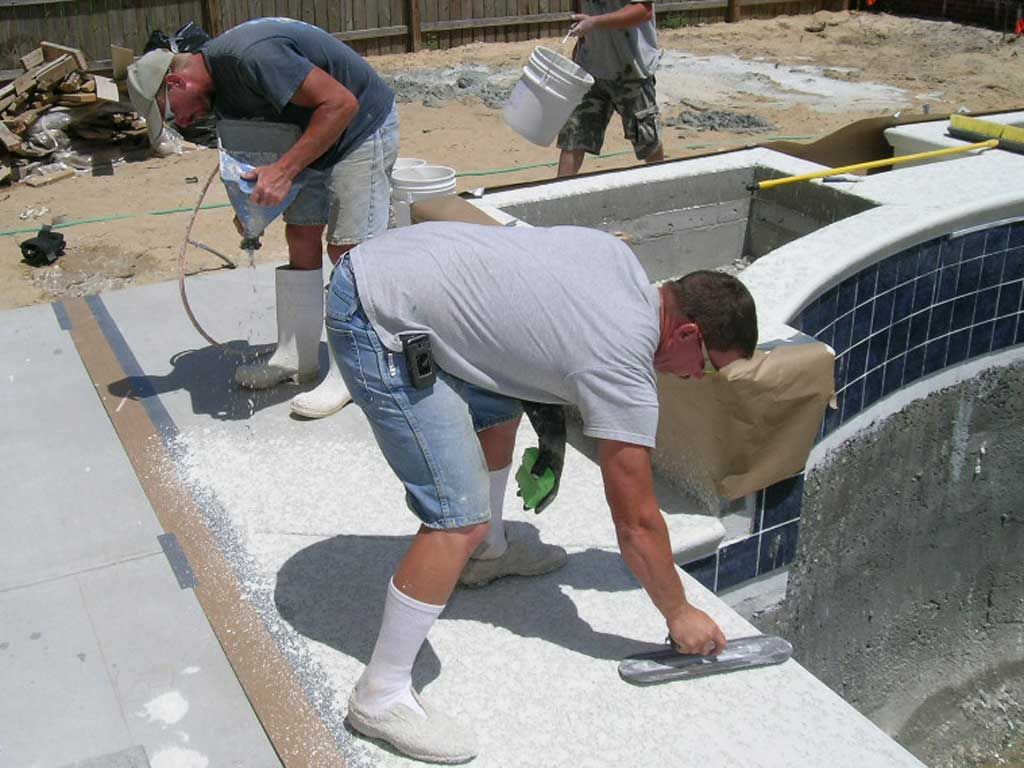

Spraying texture on the pool deck.

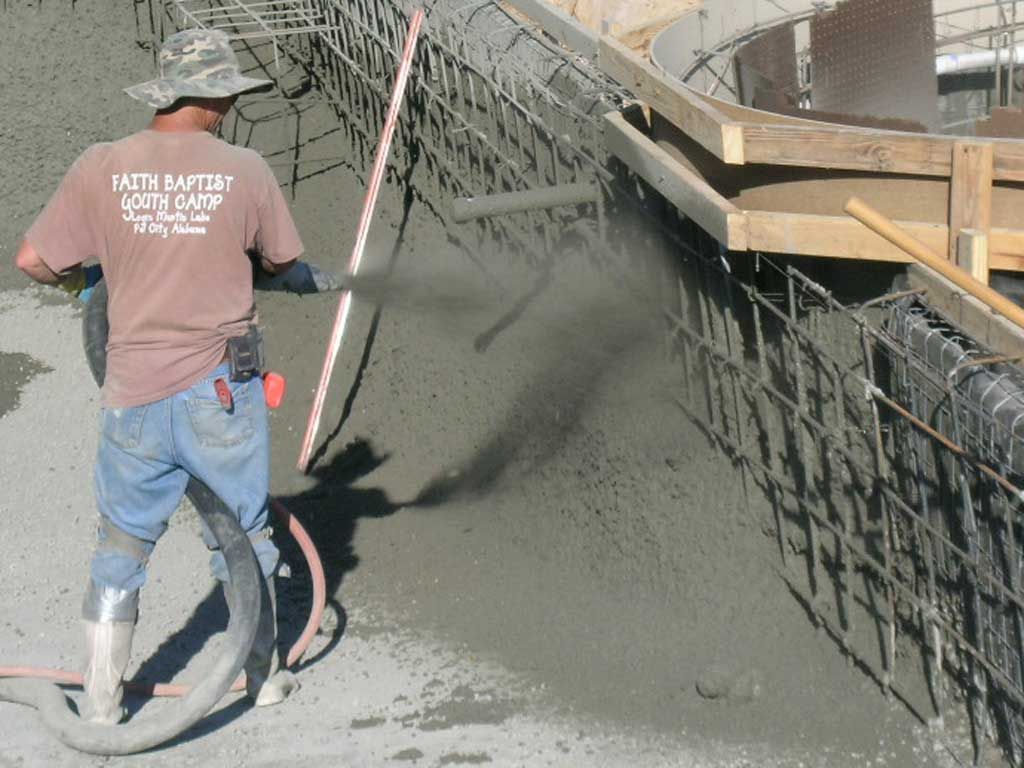

Mick with Cox Pools shooting the shell. 12" concrete walls on this pool.

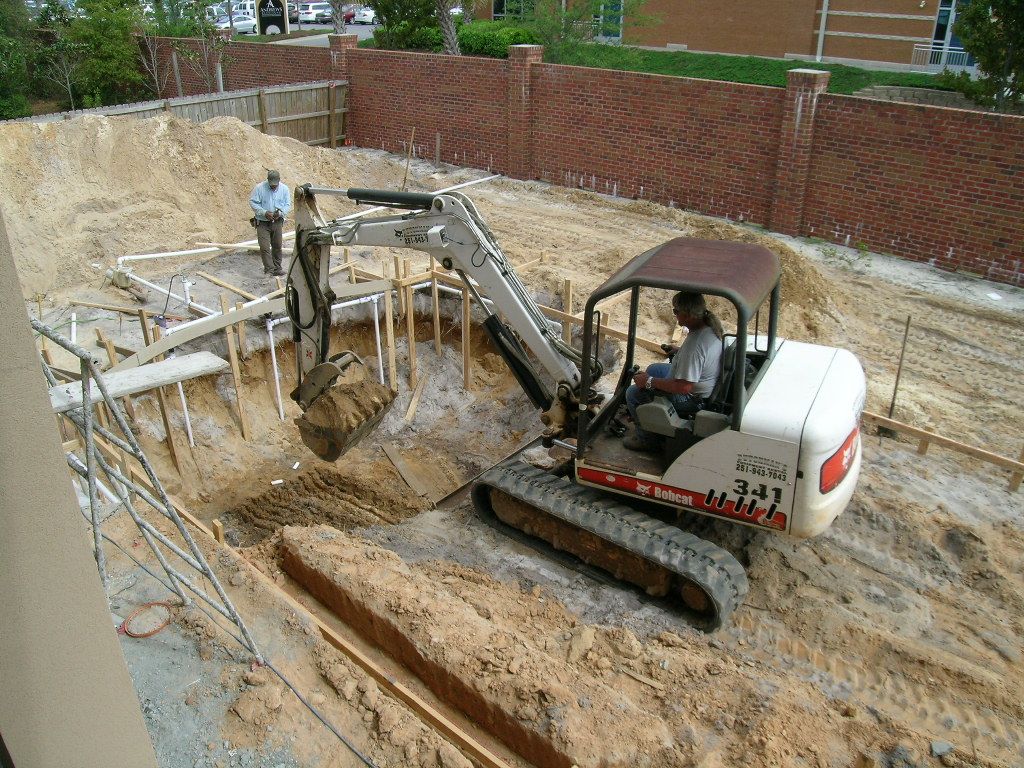

Hubert with Cox Pools digs the deep end.

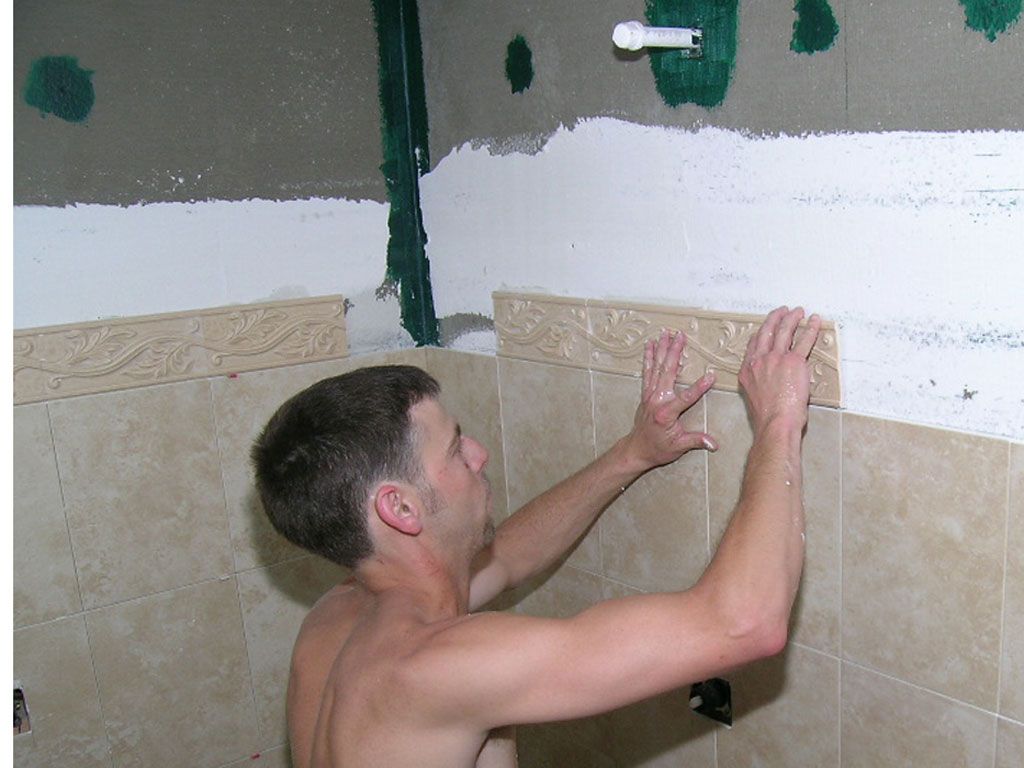

Mark setting the listello tile in the mater shower.

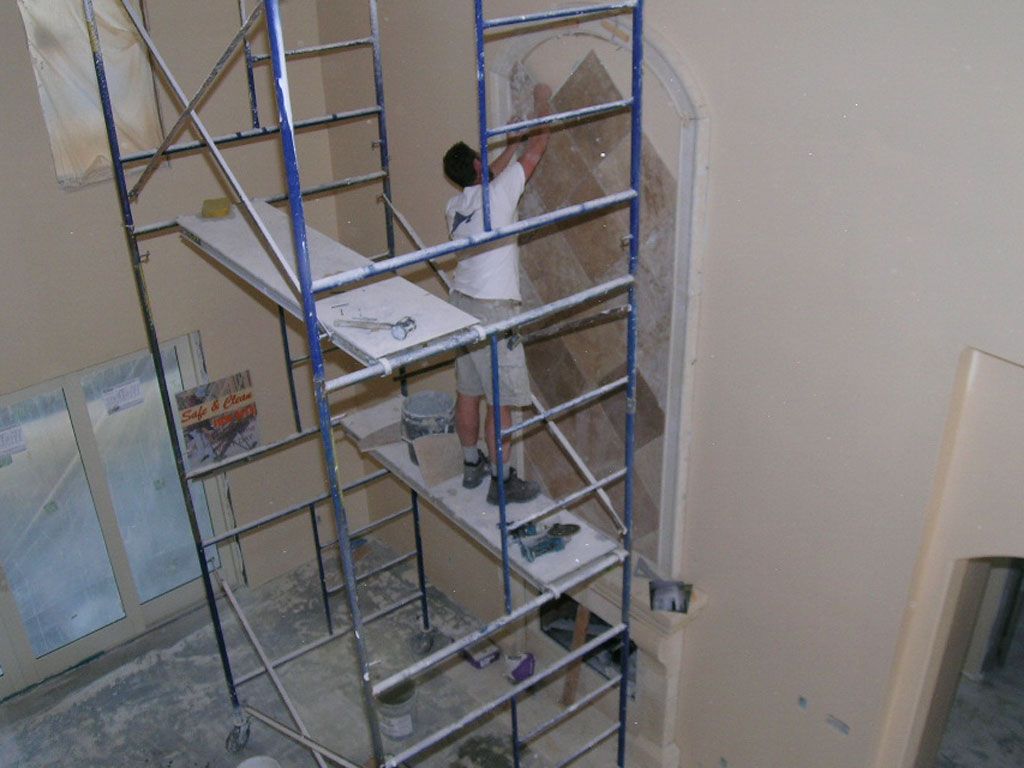

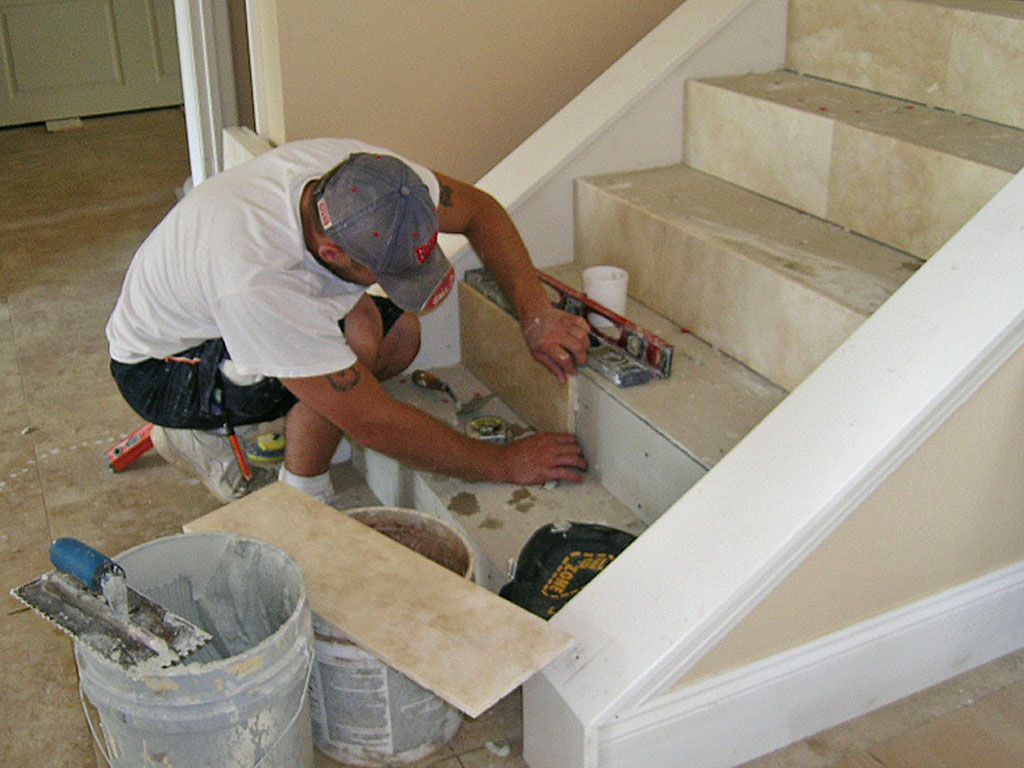

Installing travertine on the living room stair case.

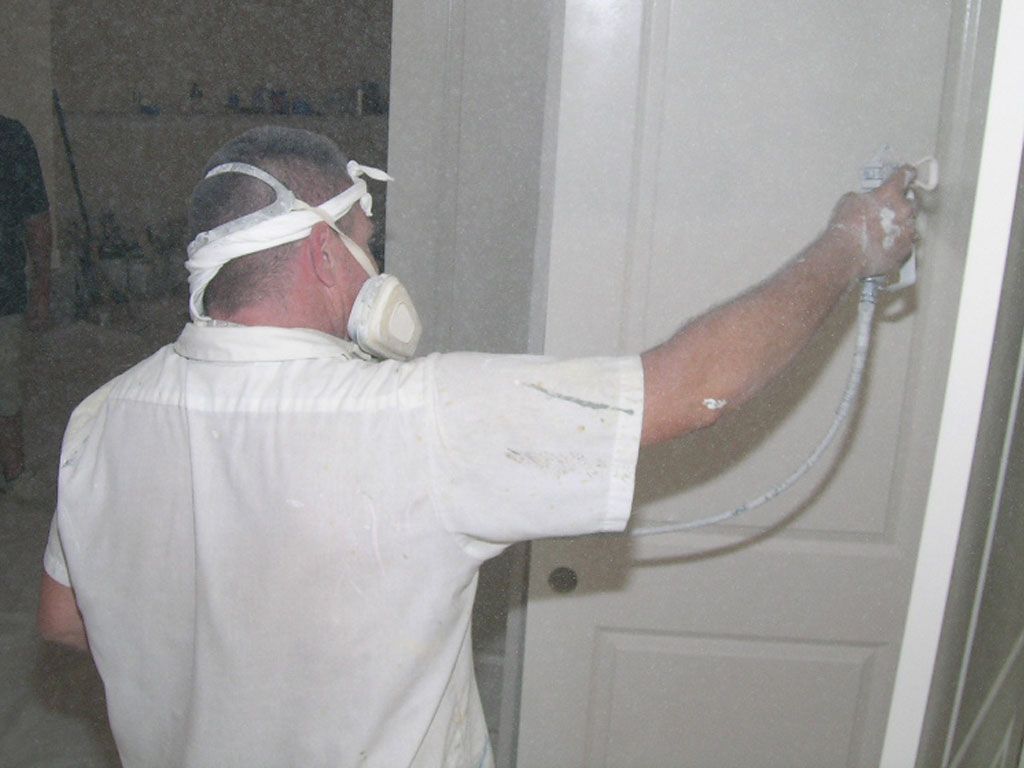

James spraying the doors. Baby butt smooth doors coming up.

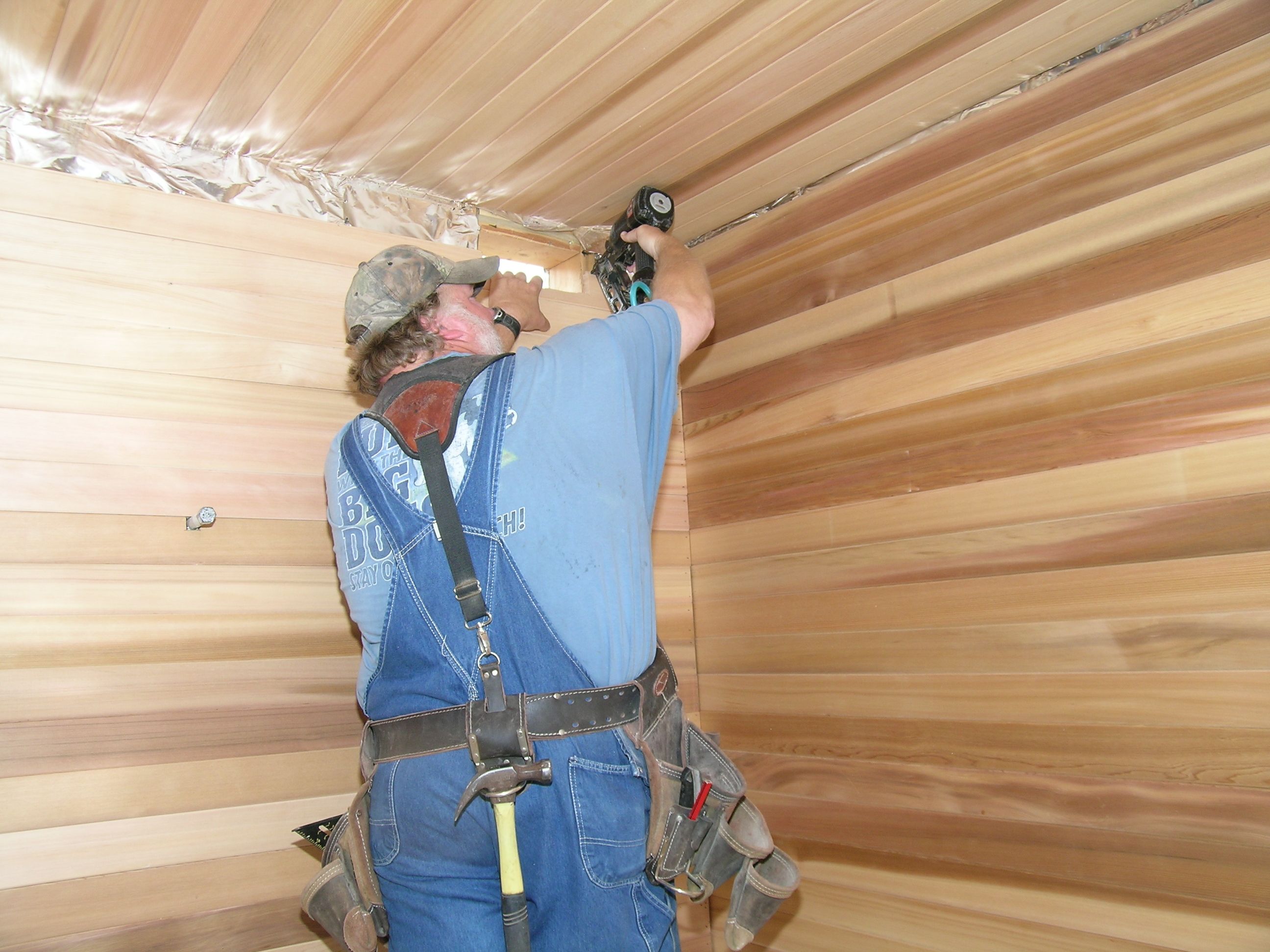

Robby Mears installing the 3/4 tongue and groove cedar walls in the sauna. Notice the radiant barrier foil at the top of the wall. The entire room is lined with the RBF to reflect heat back into the room. We're using full 3x4 T&G clear cedar, not the cheap 1/2" stock where the joints begin to show when the wood dries out. Benches will be made out of 2x2's not 1x4's, using stainless steel hardware. This will be a commercial grade sauna capable of holding up to many years of use without degrading.

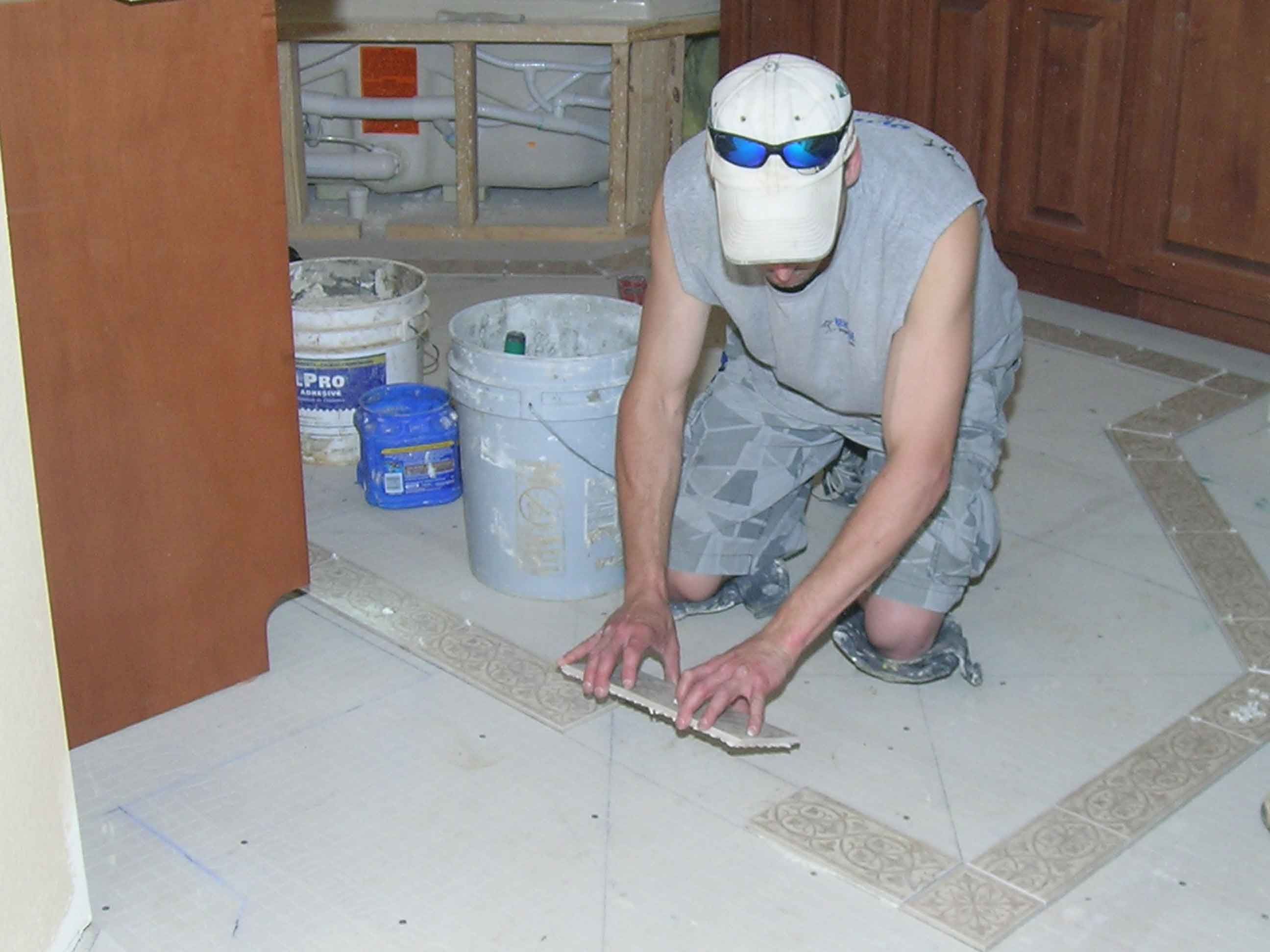

Mark setting the listello border in the master bath. He spent a lot of time laying that border out so the field tile will tie into it with full cuts instead of filler cuts. This is where craftsmanship separates from workmanship.

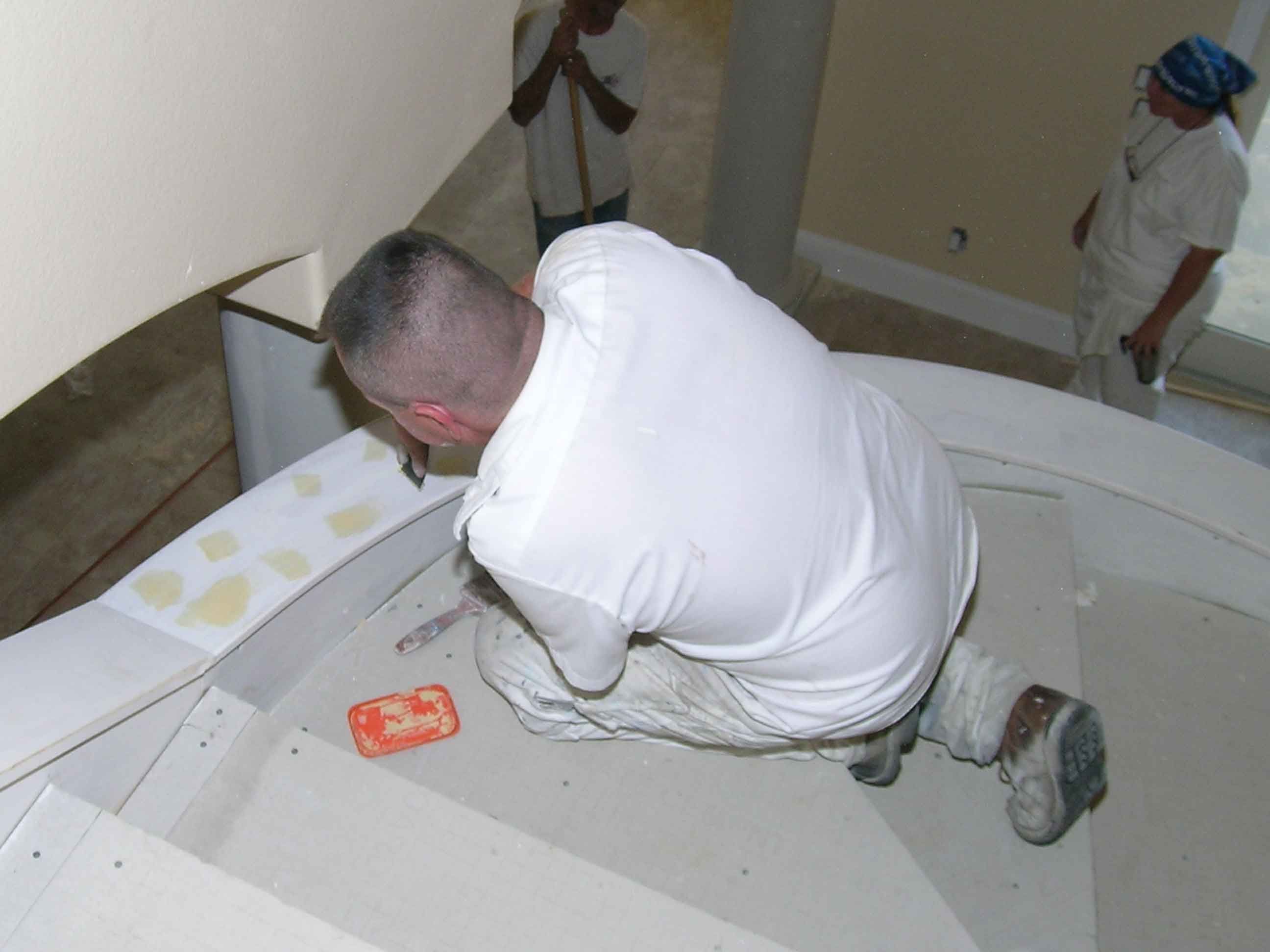

James with S&G paint prepping the stair skirt. Your paint job is only as good as the prep.

Bill with Gulf Coast Cabinets precision cutting crown molding for the cabinets.

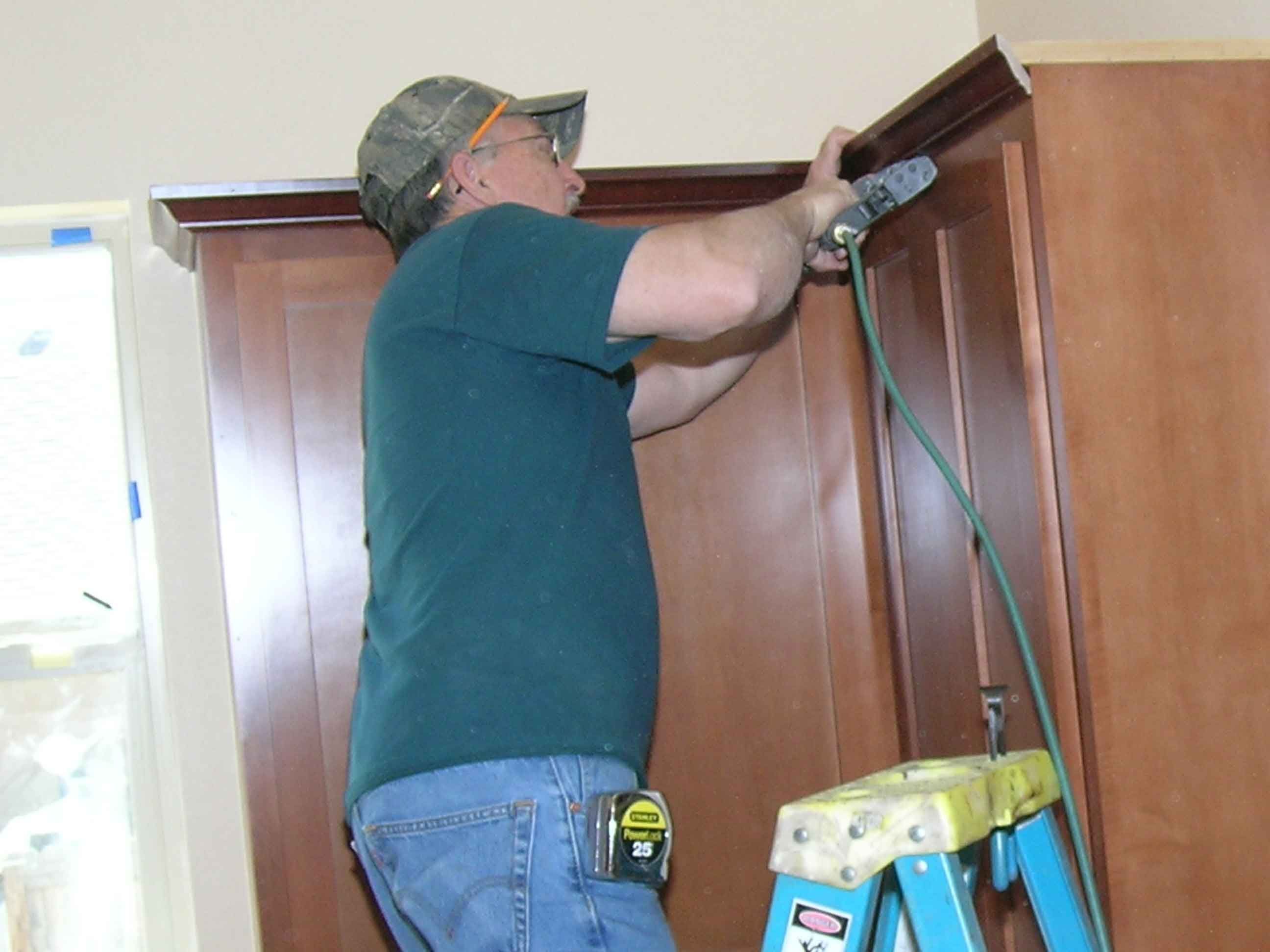

Bill installing the cabinet crown.

Darin trowling on the wear coating of the Sealoflex roof/deck coating system. This deck is encapsulated so we installed a floor drain just in front of the door (covered with blue tape). The deck is slightly pitched toward the drain for complete drainage, like a shower pan.

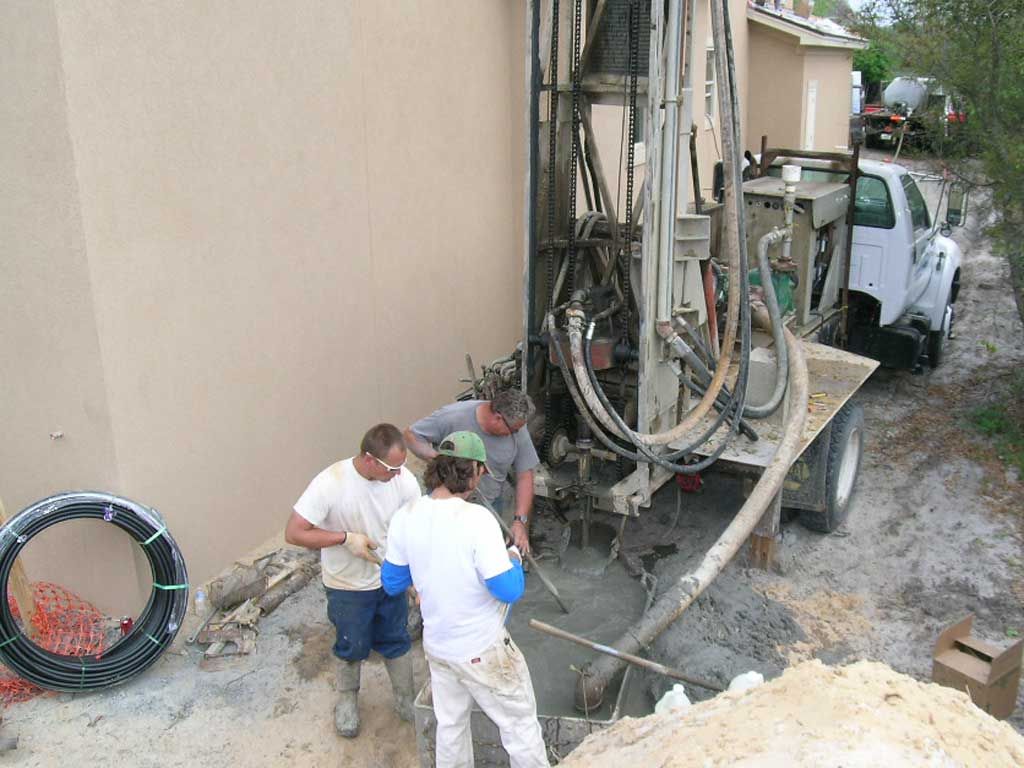

Alan Ard drilling the holes for the geothermal gound loops. Each well is 250' deep. There will be 8 wells for a total of 6000' of loops in the ground or roughly 1' of loop per square foot of living area.

Alan feeds the loops into the holes. Fluid will circulate through these loops and exchange heat into the ground from the air conditioners.

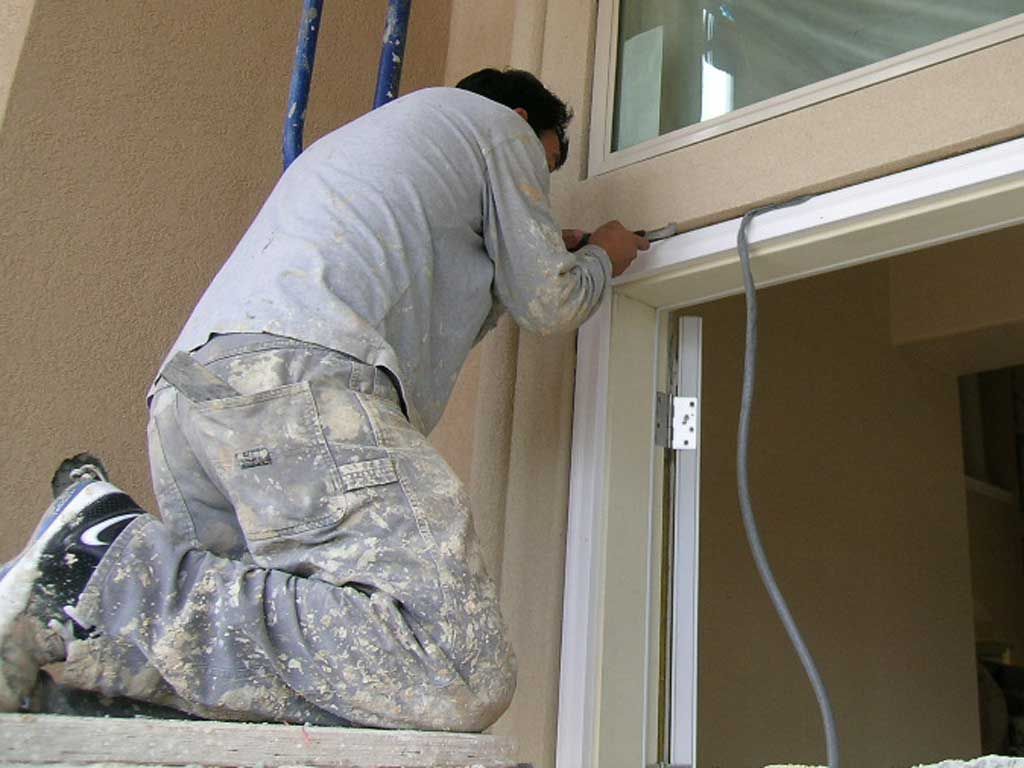

Arturo is cleaning out the gap between the door frame and stucco stop. The grey 1/2" foam backer rod is then tucked into that gap. Then the gap is caulked with NP-1 sealant. This is the right way to seal stucco to windows and doors. Typically this joint will leak years later if it's not sealed properly.

Bob Nordhues with Coastal Stoneworks puts the finishing touches on his fireplace masterpiece.

Trowling on the finish color coat.

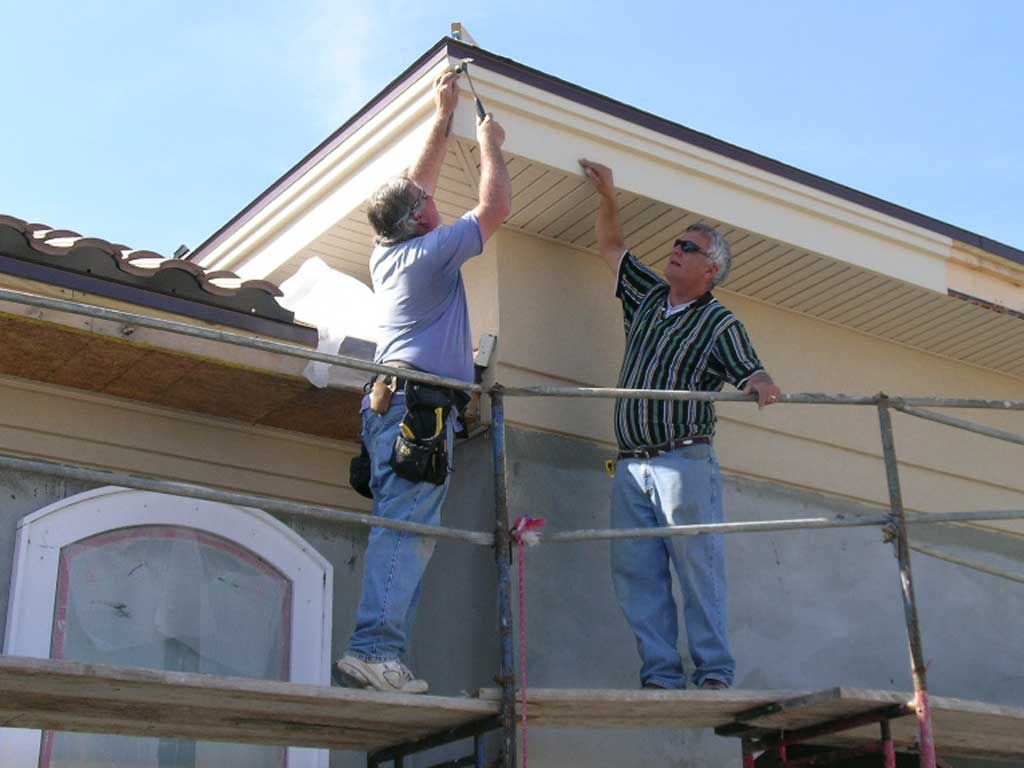

Bob and Kim installing the vinyl. Note the solid wood soffits which provide backing for the vinyl to resist high wind pressures without blowing off. The attic roof has foam applied to the underside of the decking and does not need any ventilation. No vents in the roof means no way for water intrusion during hurricanes.

Dennis finishing the foyer arch. It's all in the technique.

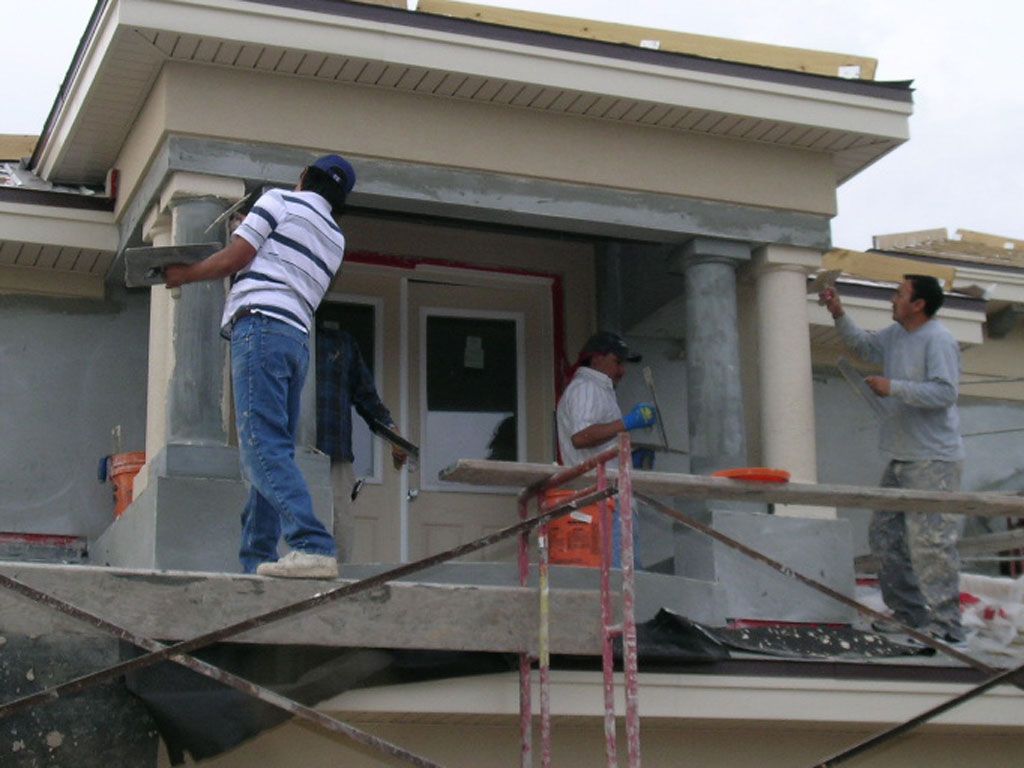

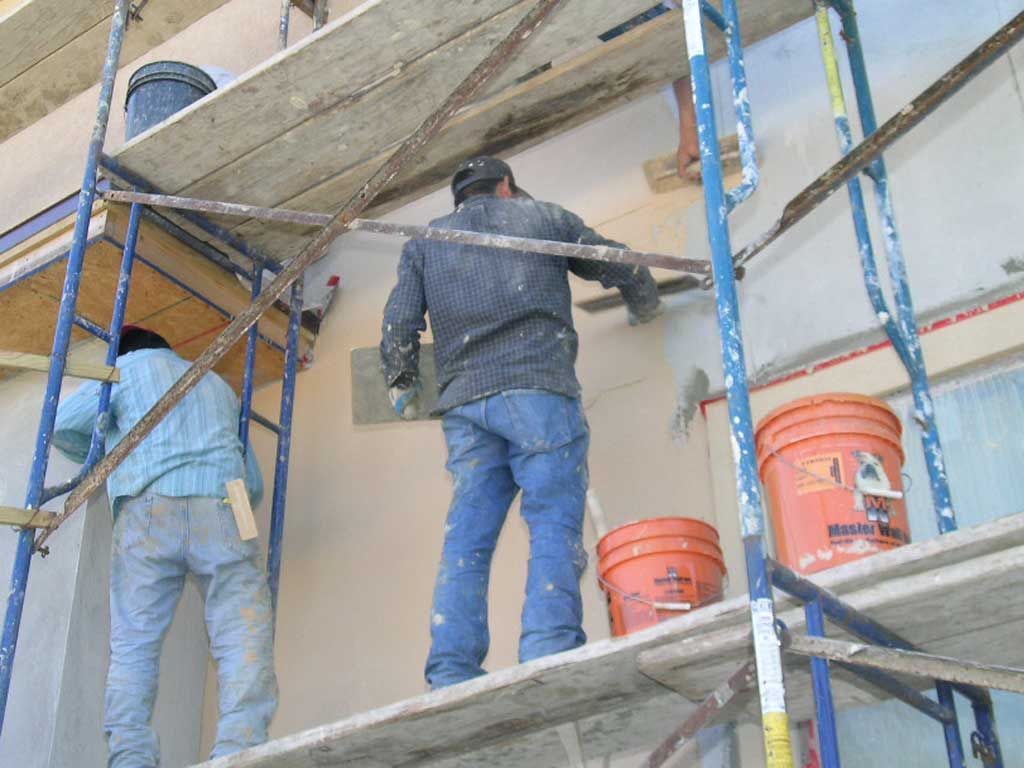

Applying the second coat or "brown coat" which must be screeded and trowelled flat, smooth, and true. This is the surface to which the finish coat will be applied so it must be near perfect like body work on a car before it's painted.

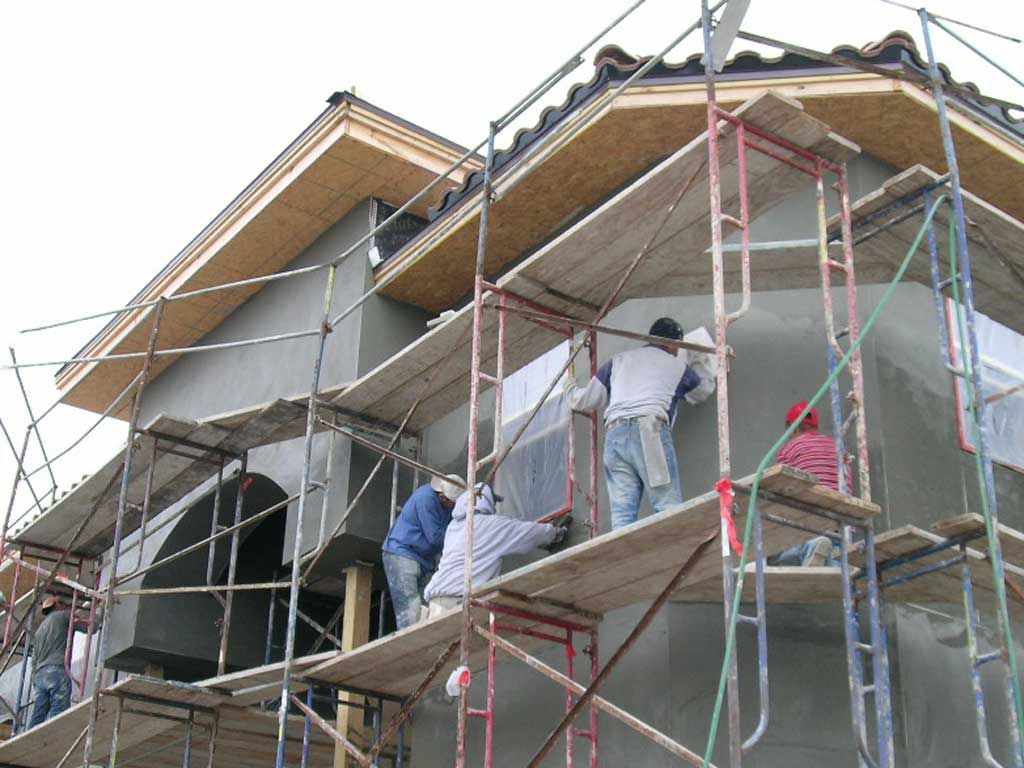

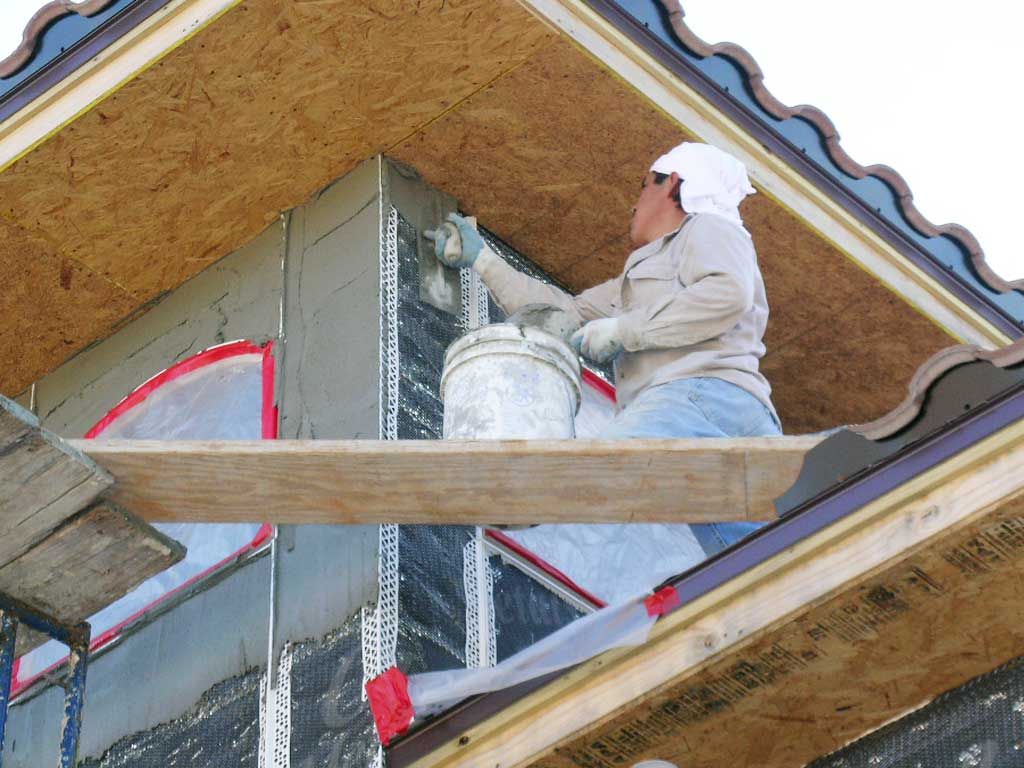

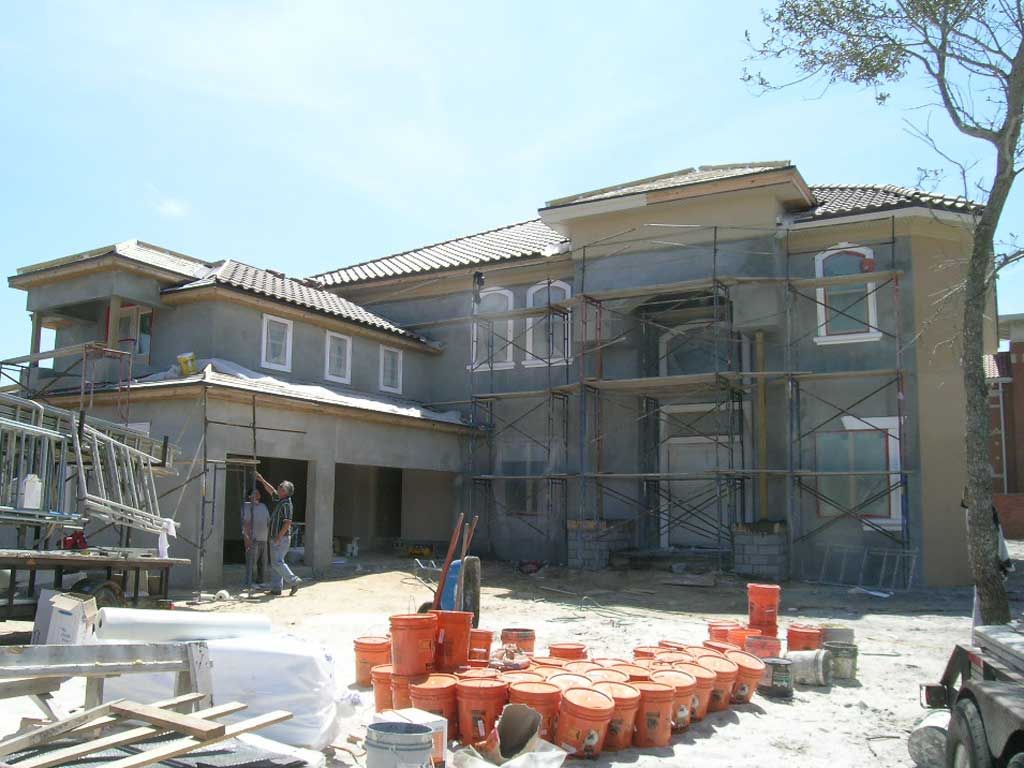

Filling the wire lath with stucco mud (scratch coat). Notice the white expansion joints. These joints are placed at the windows and every 10' to prevent the stucco from cracking.

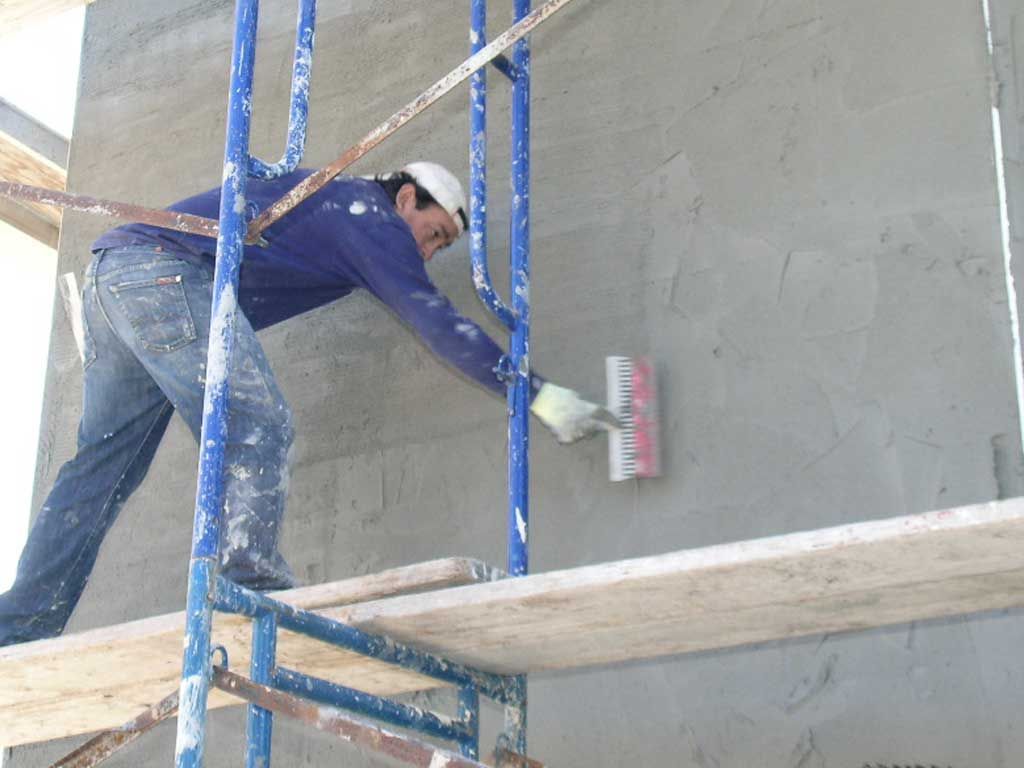

Combing the wet stucco to rough it up so the next coat bonds properly.

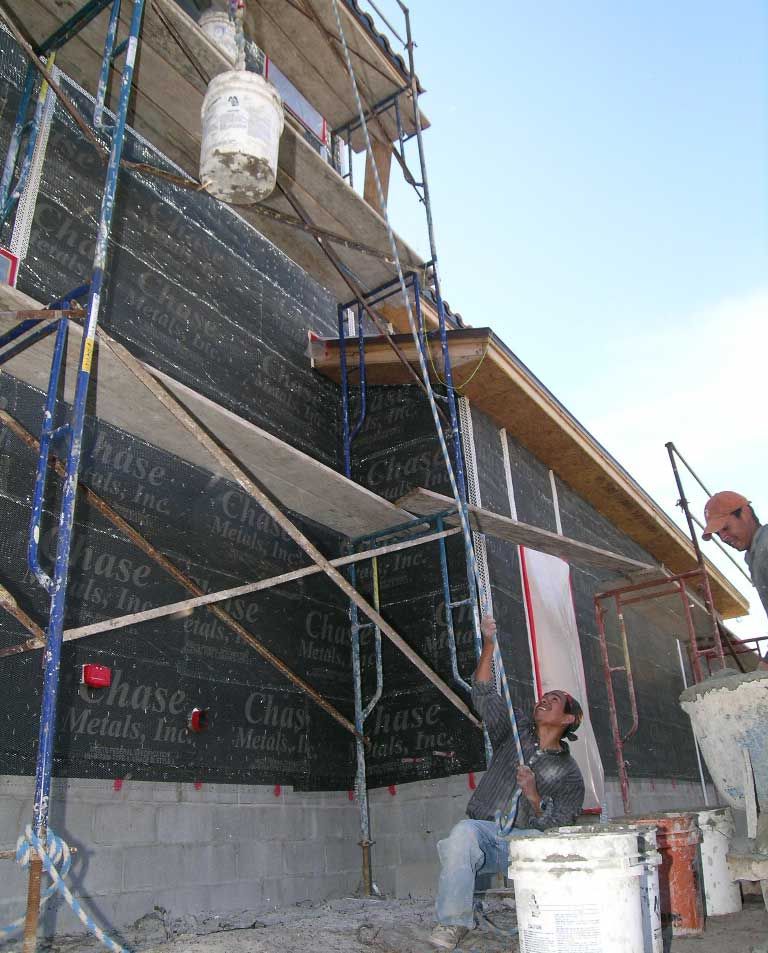

Hohan hoists a bucket of mud up to the workmen.

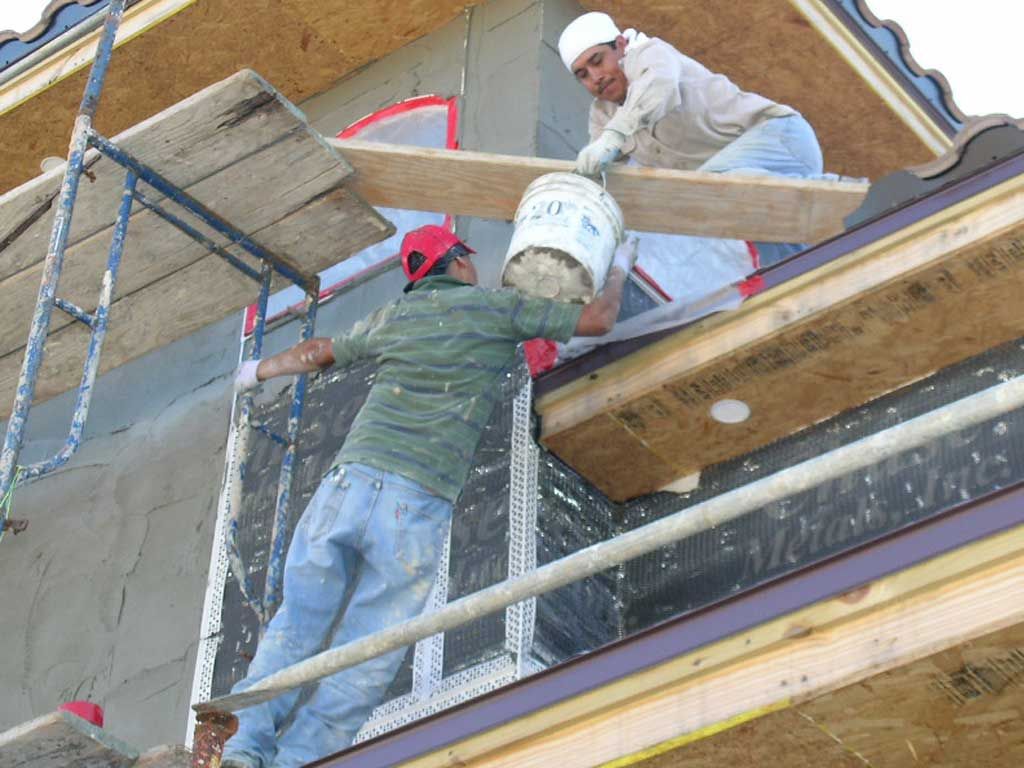

Miguel lifts the bucket up to Ernesto. It took a lot of calories to get that bucket up there.

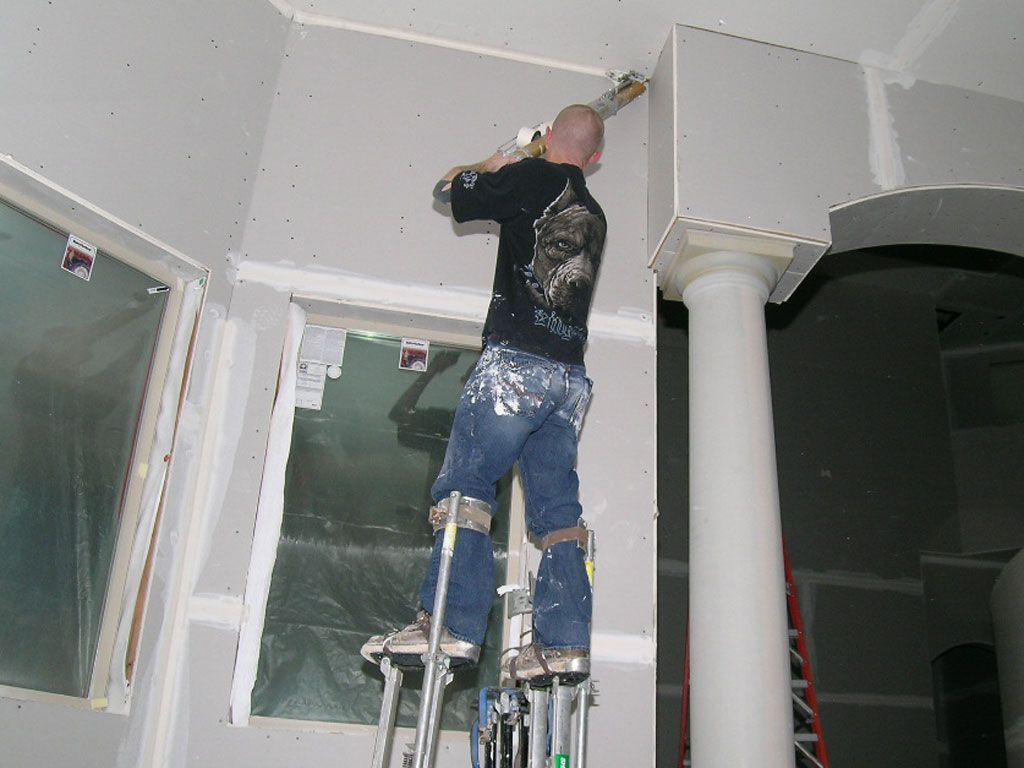

Dennis applies tape and joint compound with a "bazooka" automatic taper. I think I heard that dog growling at me.

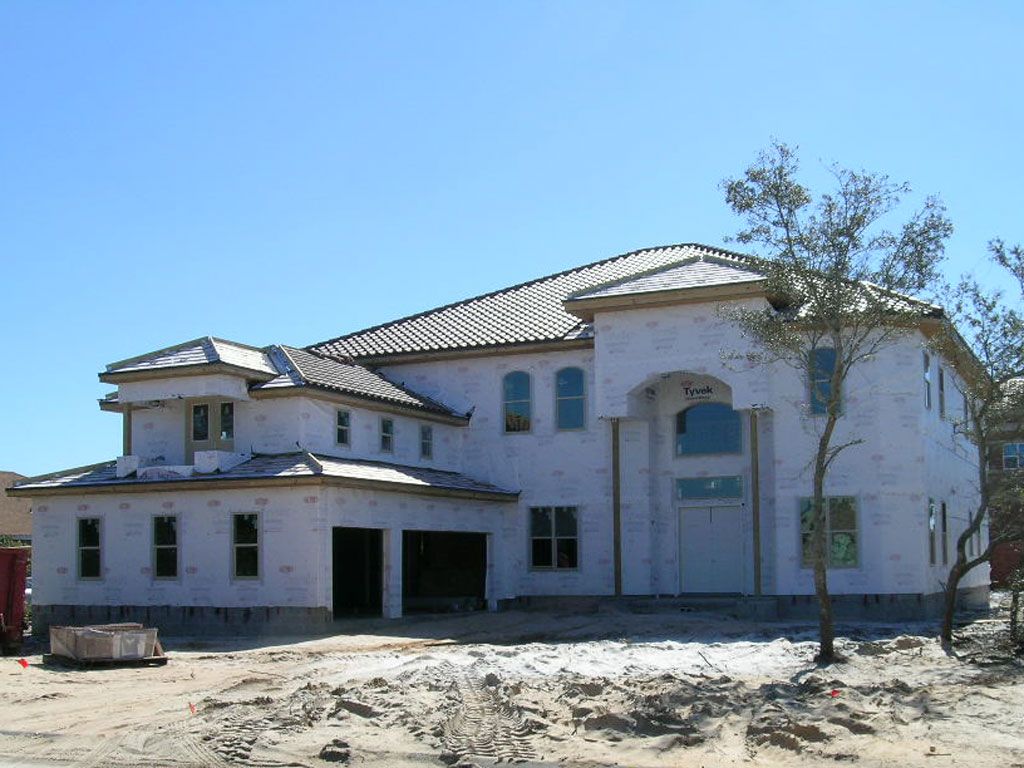

Tyvek drain wrap installed and windows properly flashed so that if there ever is any water intrusion behind the stucco it has a path to drain down to the ground without damaging the wood structure.

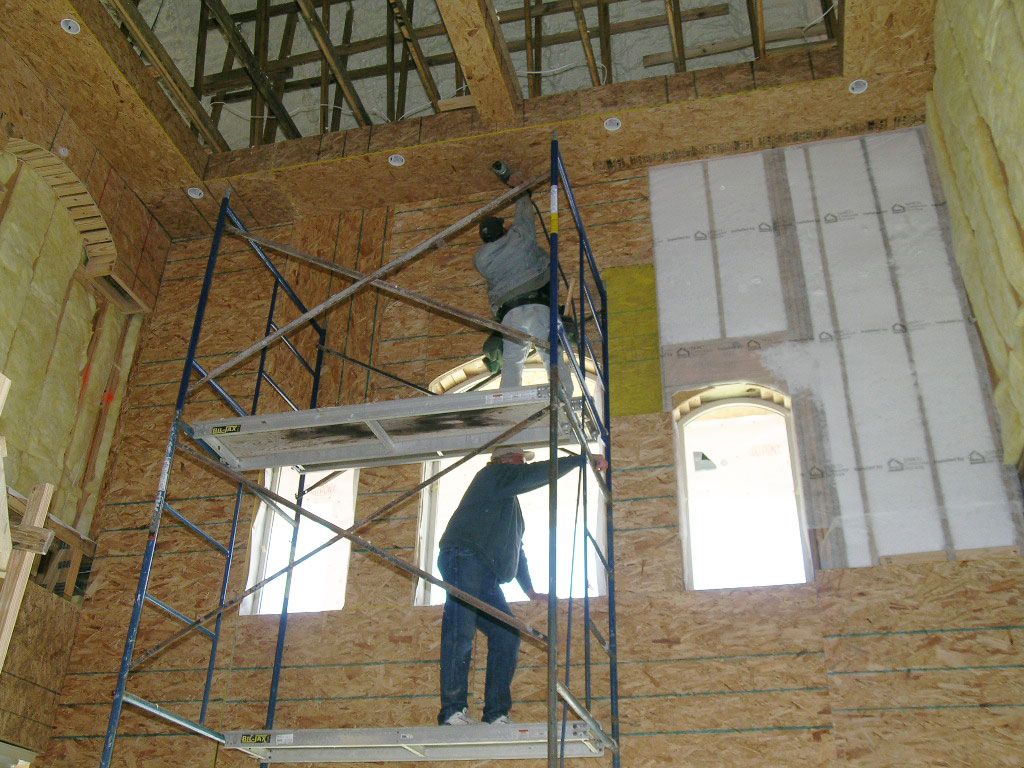

Installing sheathing on the inside of the wall provides added strength where it is most needed. This living room wall is 24' tall balloon framed with 2x8's. Adding a layer of 5/8" sheathing on the inside adds a lot of stiffness to the wall to resist hurricane wind pressures. Sheathing on both sides of the studs makes the wall act like a vertical box beam. We had to wait for the insulation to be installed before we could sheath this wall. Note the yellow fiberglass batting on each side to cut down the sound transmisssion between the bedrooms and living room. You can see the foam attic insulation at the top.

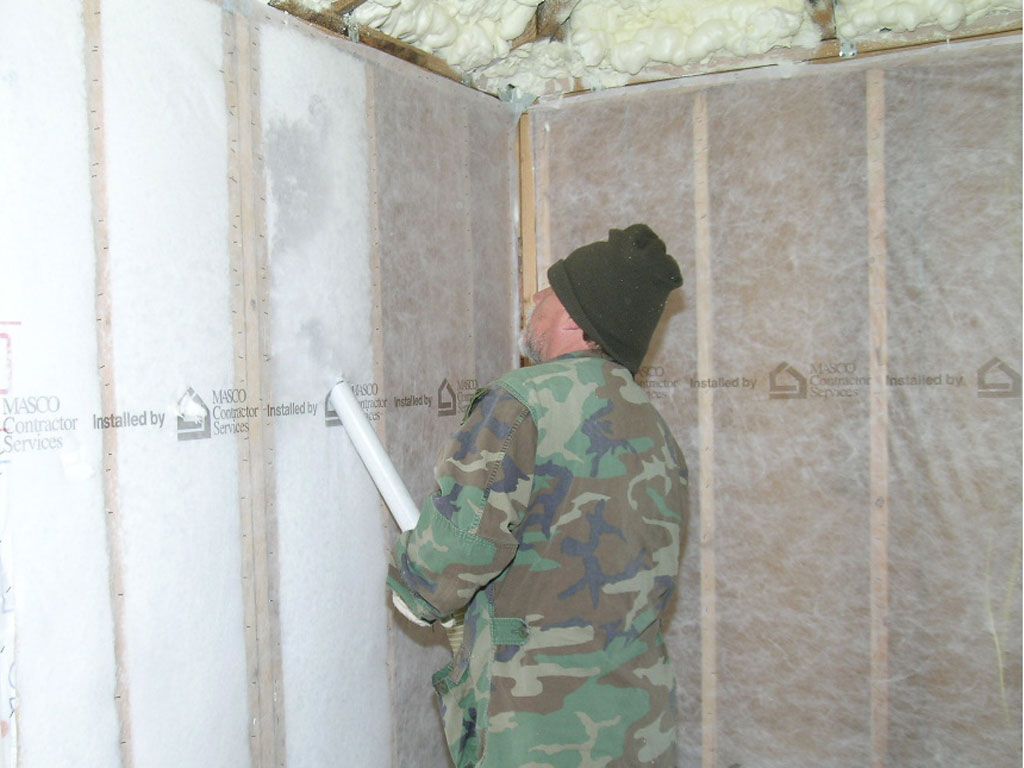

Carry spraying blown-in batt insulation (BIBS) for Coastal Insulation. I asked him how he knows when a cell is full. He said he can tell by the sound of the cell filling up, like a bottle filling up with water, then when the fabric puffs out a bit he knows it's filled to the right density. Just full enough so the drywall will push it back in but not so full that it will bow out the drywall. We can get R-23 out of a 2x6 wall with BIBS. You can see the foam attic insulation in the top of the photo.

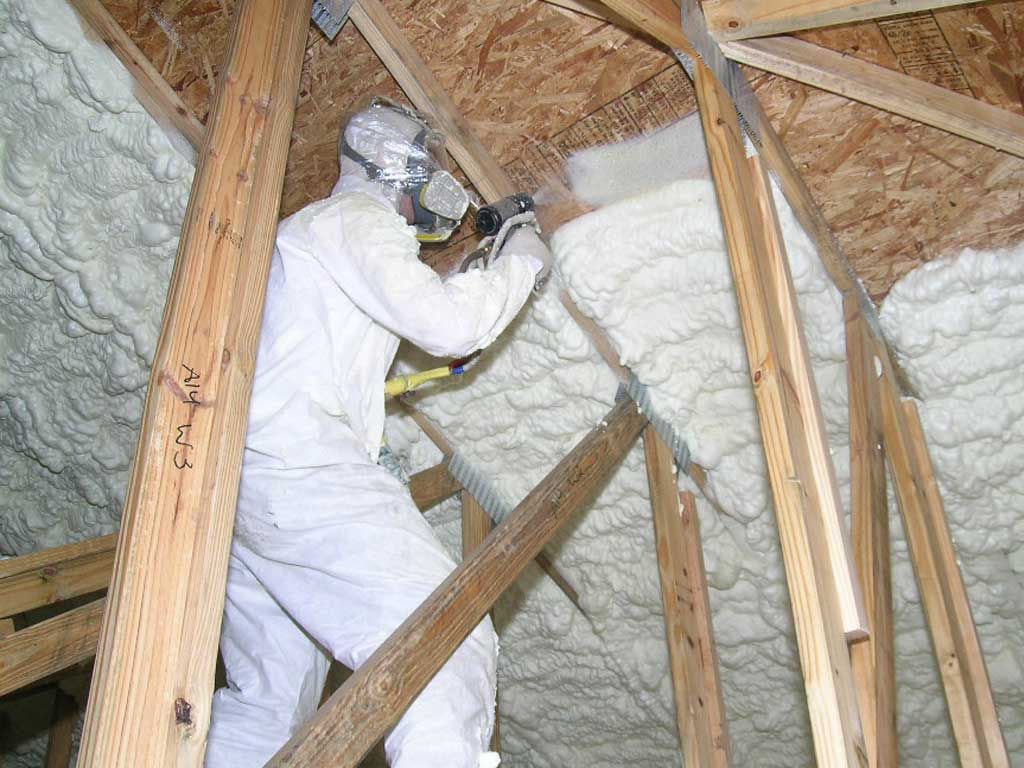

Josh with Top Foam Solution spraying open cell foam insulation to the underside of the roof decking. With this type of attic insulation the attic is completely sealed. No soffit vents, no ridge vents, and no way for blowing rain to ever get in during hurricanes. The attic will be completely air tight cutting way down on air leakage. With the thermal envelope enclosing the attic the AC ducts are in cooler semi conditioned space which results in less duct loss and a much more efficient heating and cooling system.

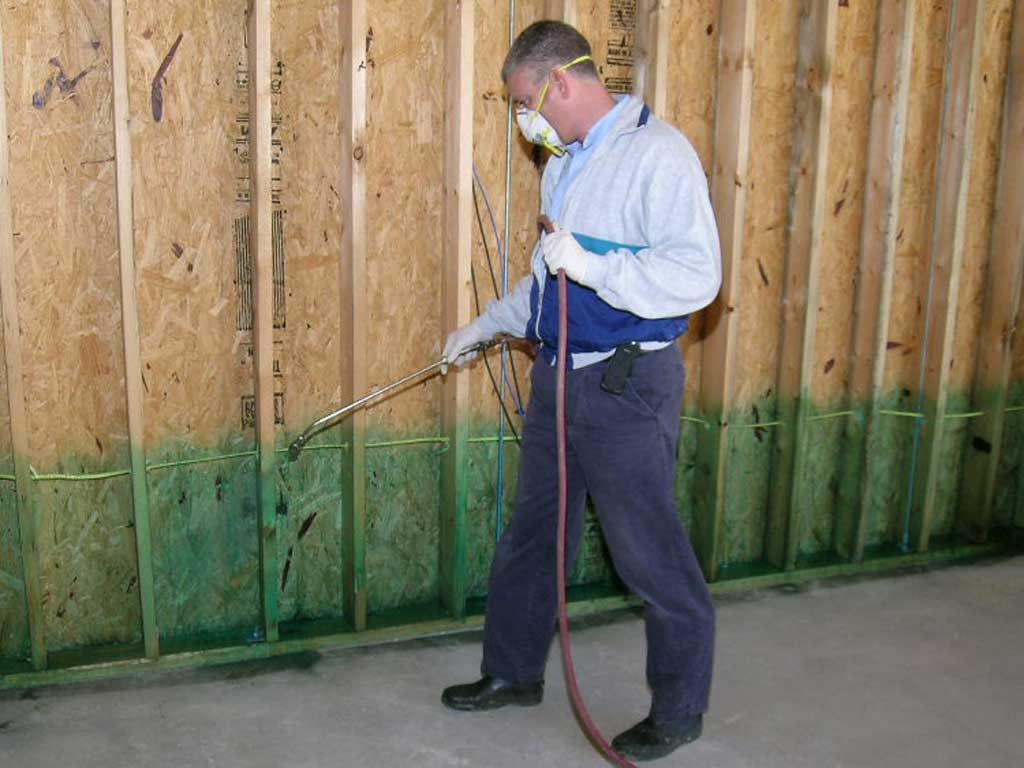

Kenny sprays termite treating on the bottom 2' of the wood framing so any termites that get past the pretreated soil under the slab will encounter poisoned wood. This is one part of a 3 part system of our termite defense. 1. pretreat under the slab. 2. Poison the wood. 3. Perimeter poisoned soil barrier when the home is complete. We want the termites to give up and go next door.

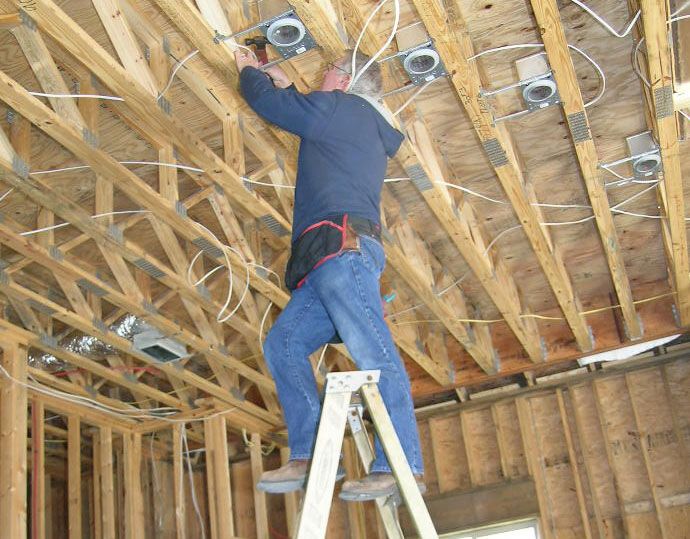

Ken installing recessed light housings. Ken's got a lot of experience. I hear he wired up Fred Flinstone's house.

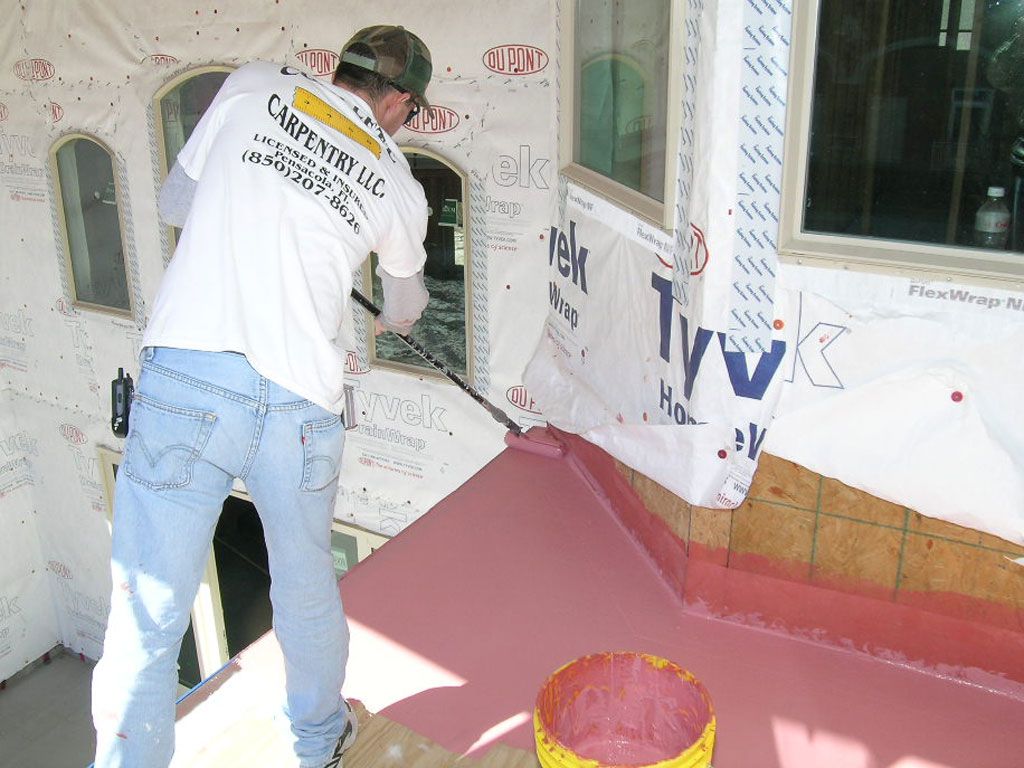

Darin applies sealoflex to the master BR balcony decking. Notice how the fabric reinforced sealoflex coating turns up the wall behind the secondary rain barrier. This deck will never leak and no leak from above will ever rot out the deck below. This is the bullet proof way to seal the deck. No call backs, ever.

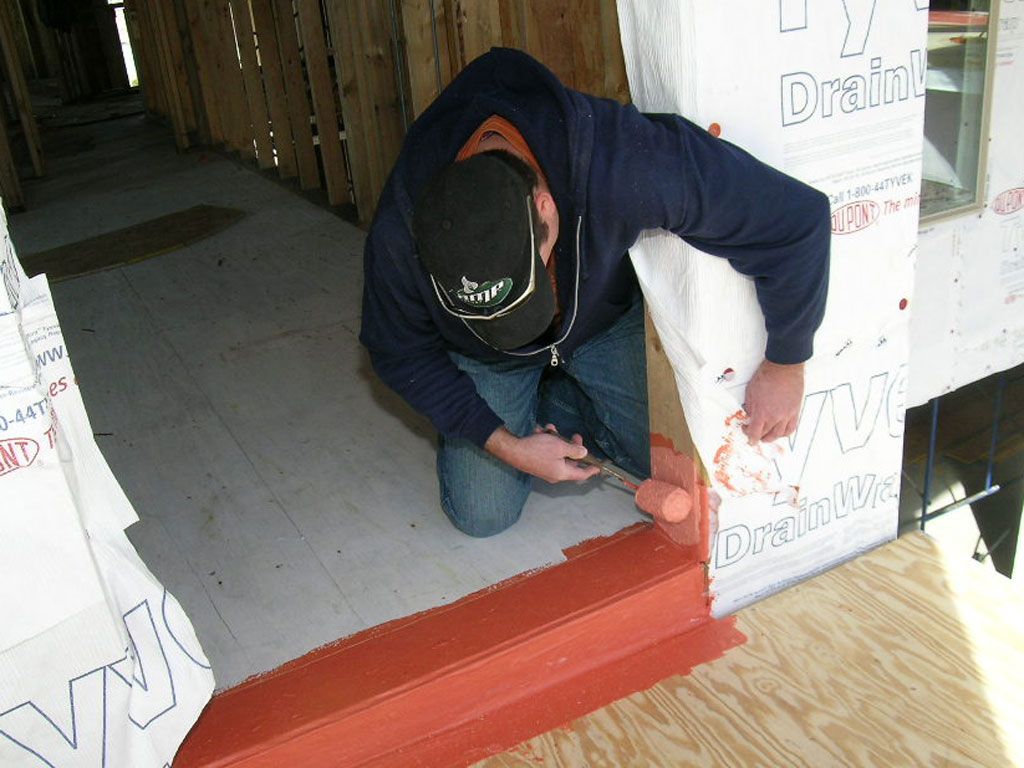

Steve installs sealoflex around all the second floor door openings to make sure the threshold areas are completely sealed and impervious to water intrusion. This is a typical area where water intrusion will rot out an elevated deck if not sealed properly.

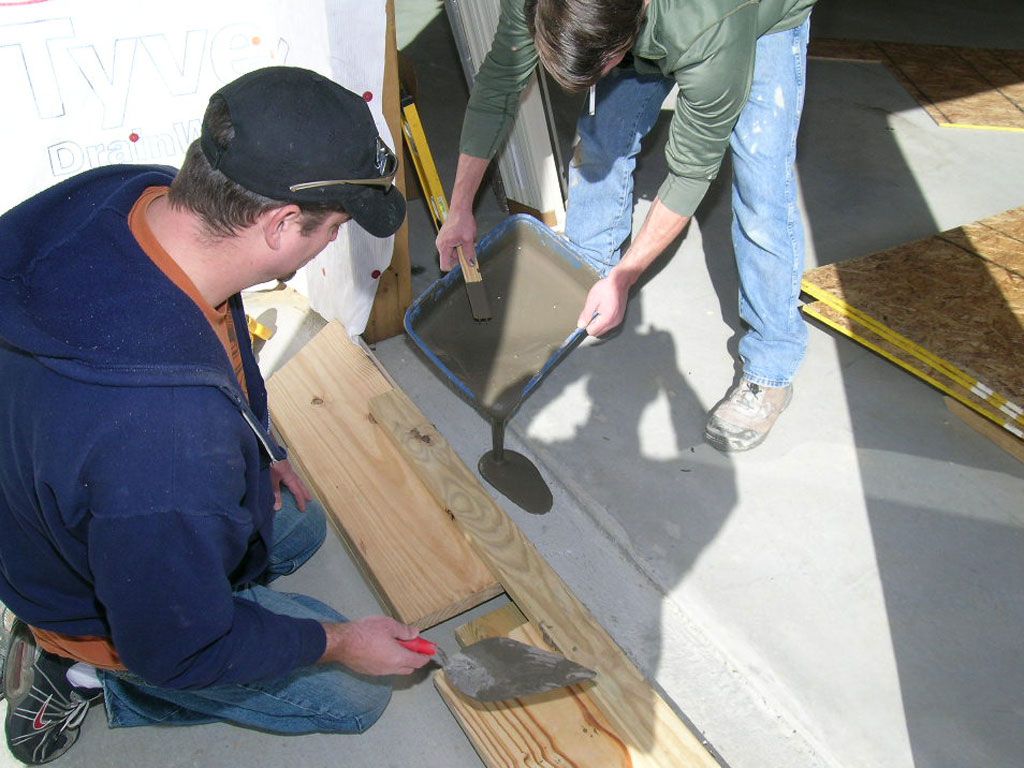

The ground floor thresholds are coated with a self leveling compound to make sure the sliding glass door tracks set on a perfectly level surface.

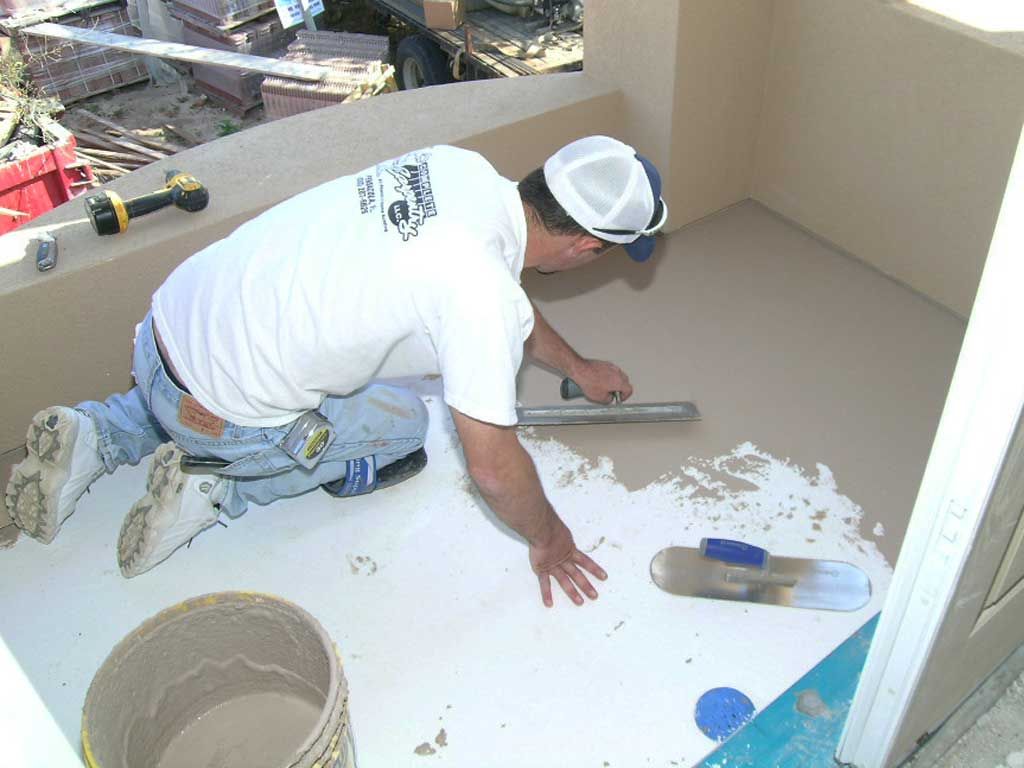

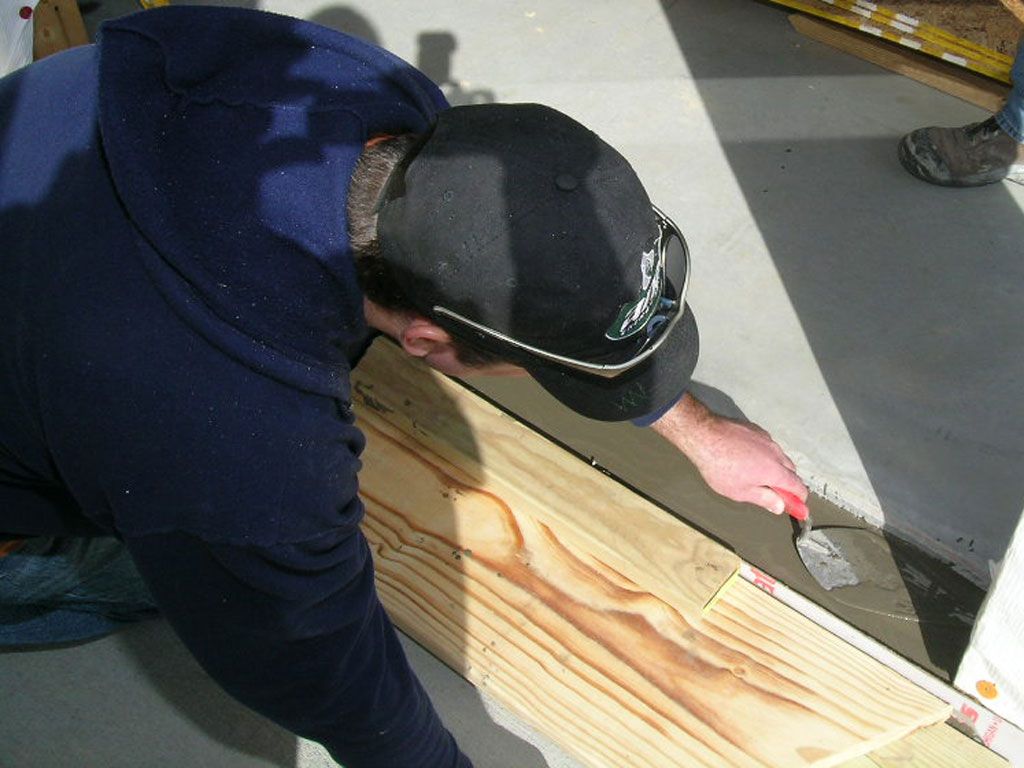

Steve trowels the self leveling compound. Note that the SGD track is recessed into the slab to create a smooth transition between the tile and track.

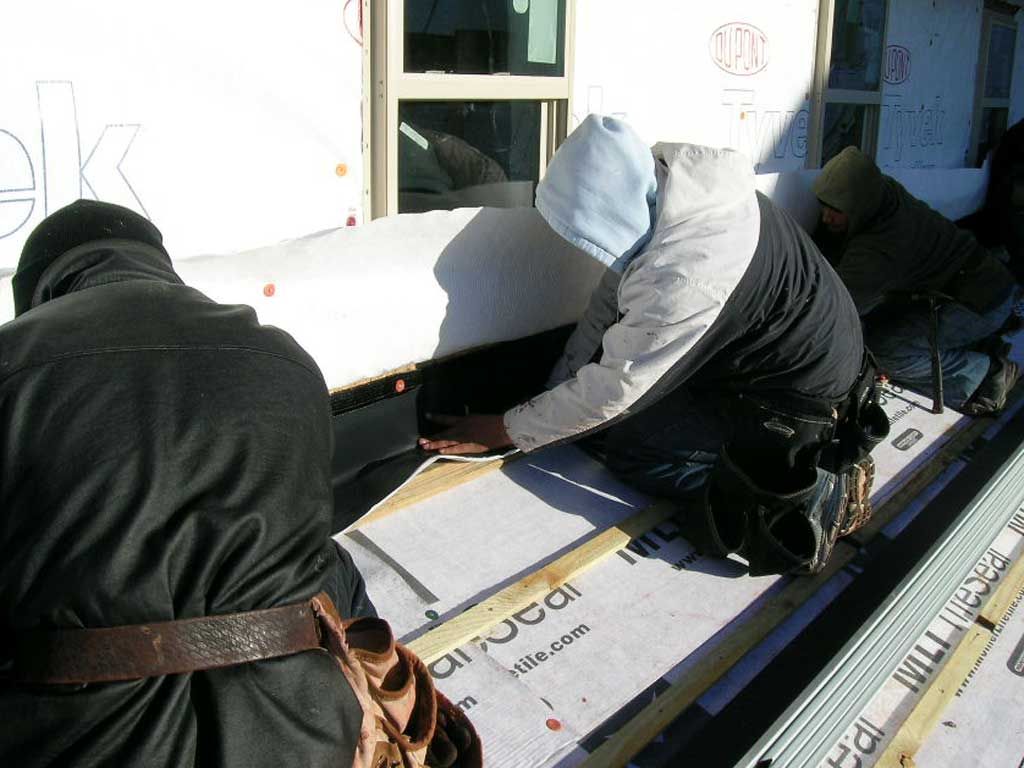

The guys from Southern Tile Roofing installing the subroof and wall flashing. Note how the house wrap is pulled up so the flashing can be installed behind it and the house wrap lapped down over the flashing. That's the right way. I often see this step being skipped and the flashing being taped off over the house wrap. If done this way, any leak in the wall or around a window can find its way behind the flashing and rot out the roof deck. Man, it was freezing that day.

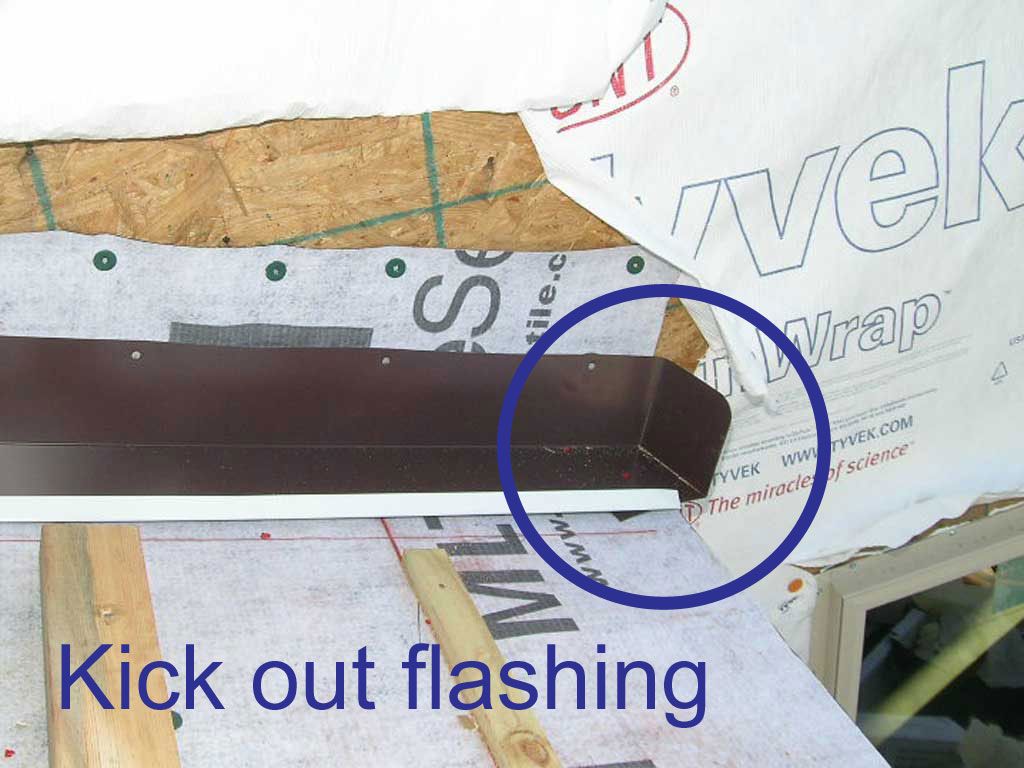

This is called a kick-out. It prevents water from getting behind the stucco and rotting out the wall where the facia abuts a wall. This is a very common omission and typically results in a rotted out wall which will go unnoticed for several years.

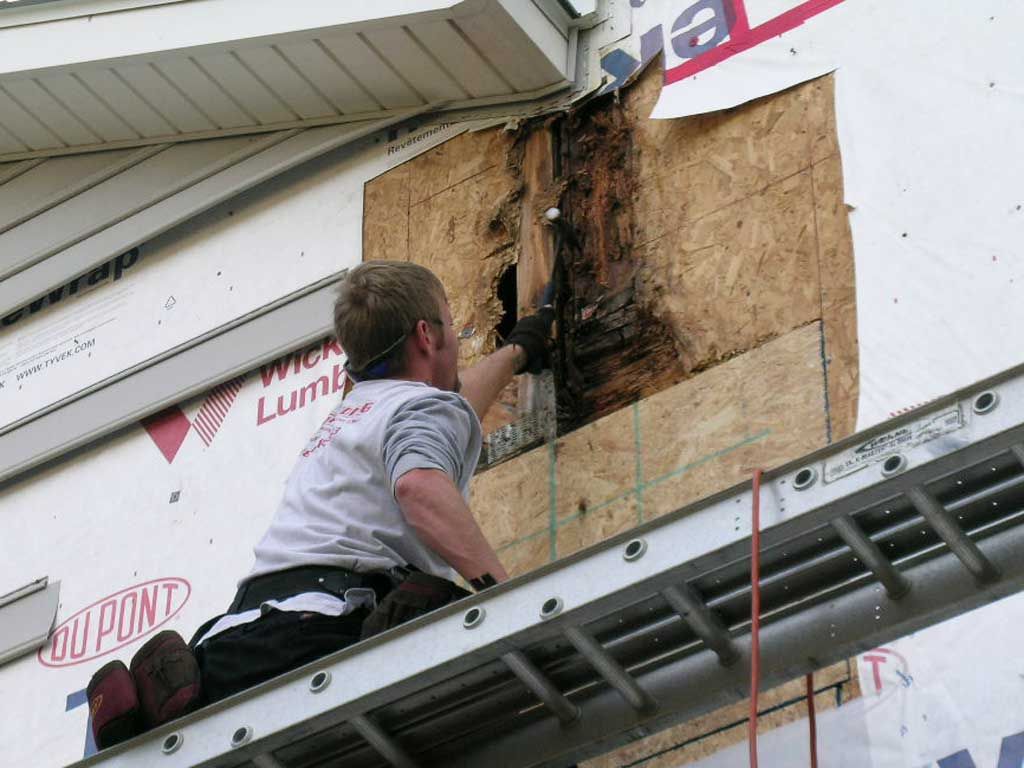

This is what happens when you don't have kick-out flashing installed properly. Water gets in behind the siding and starts to rot out the wood sheathing and studs and attracts termites. The damage fans out as the water travels down the wall. Normally this type of slow progressive water intrusion is not detected for several years until there is a substantial amount of damage.

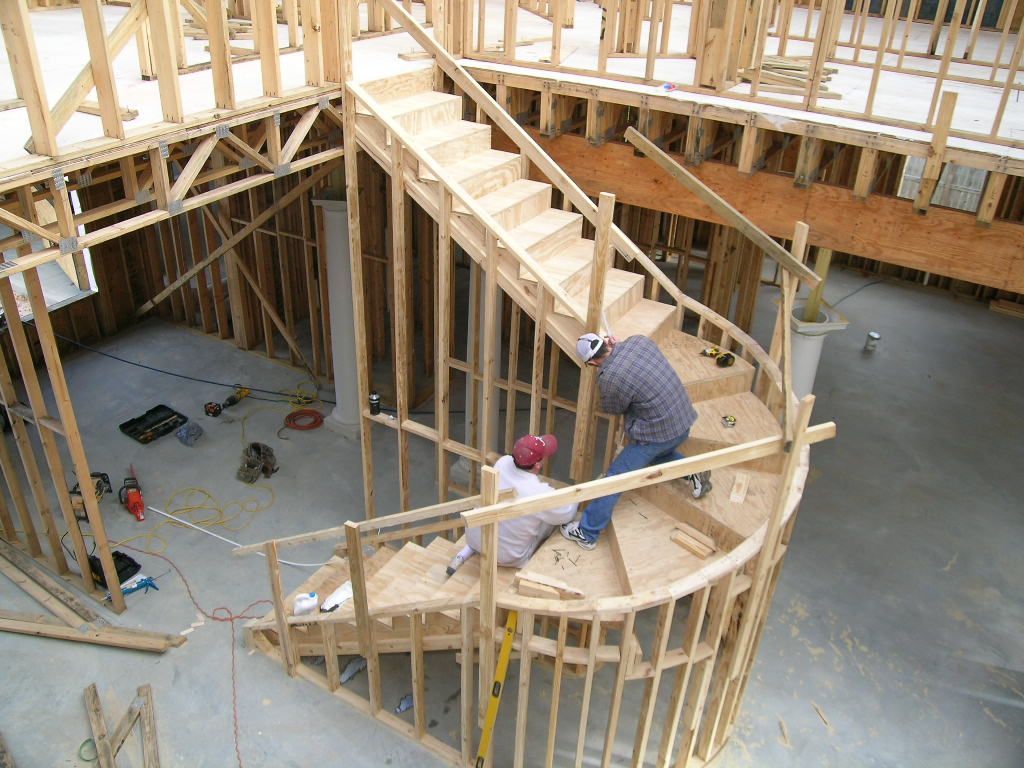

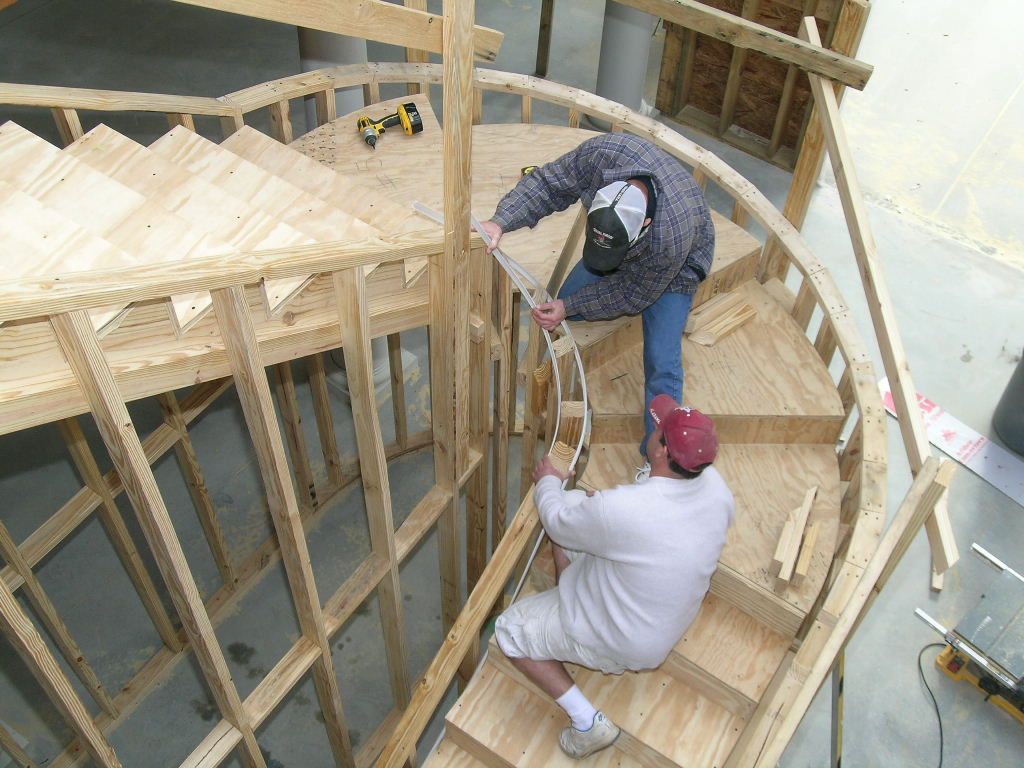

Darin and Jason build the stairs.

Darin uses a pvc pipe to set the curve on the inner radius.

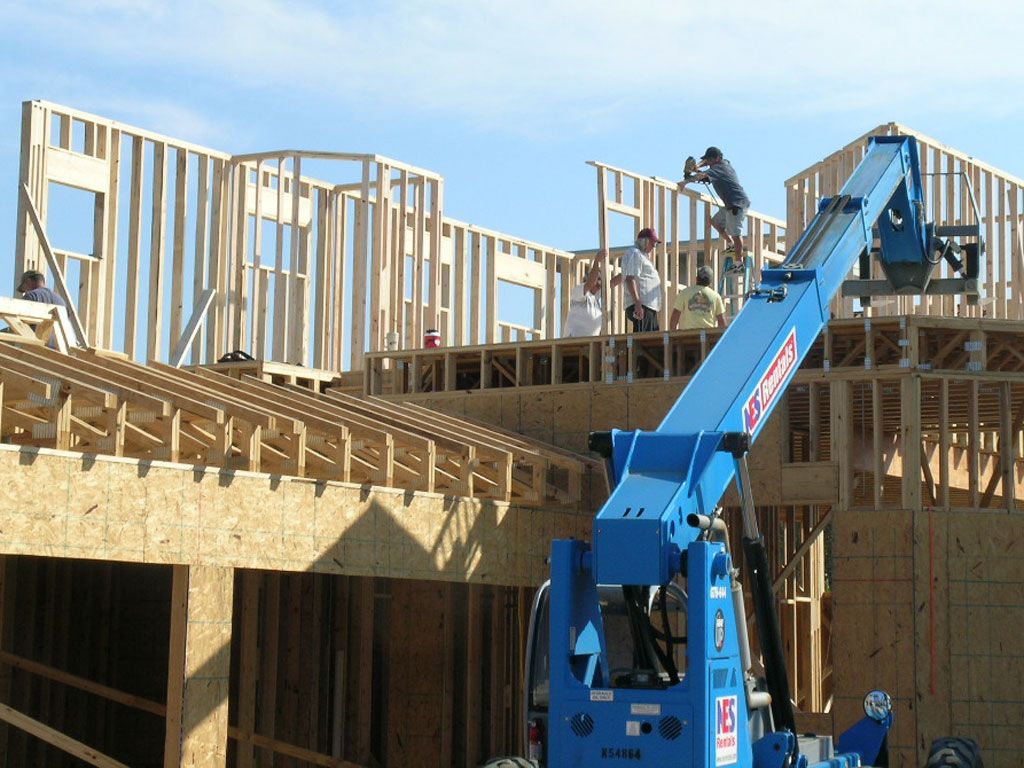

Working on the 2nd floor.

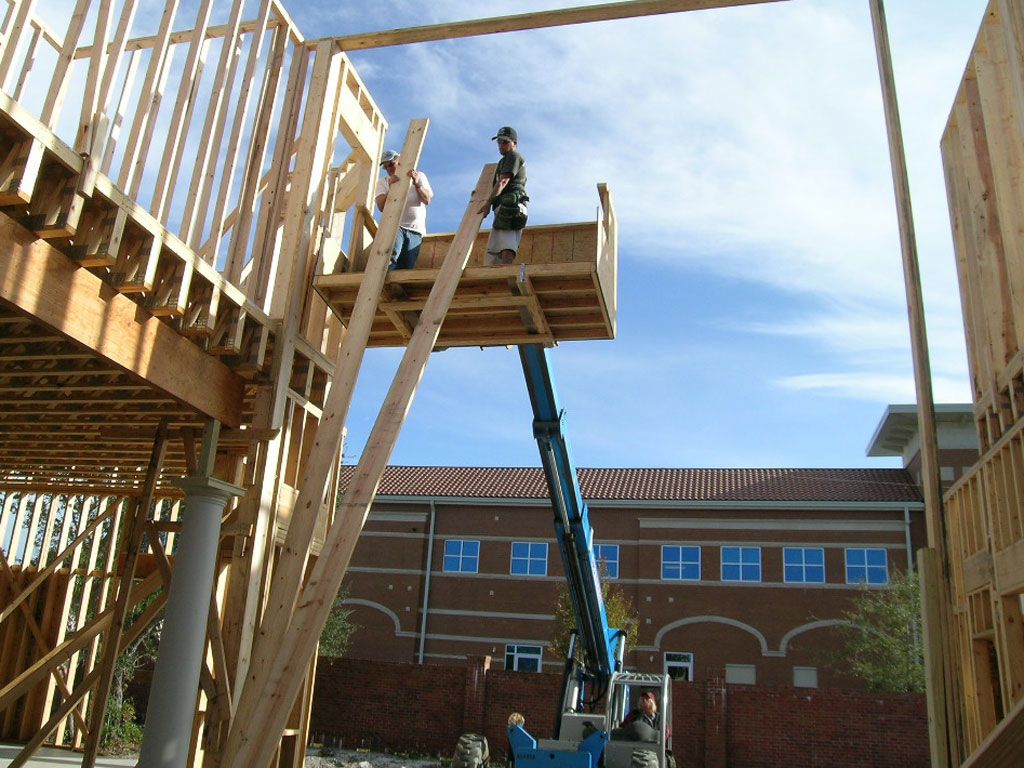

Framing up the 24' living room wall

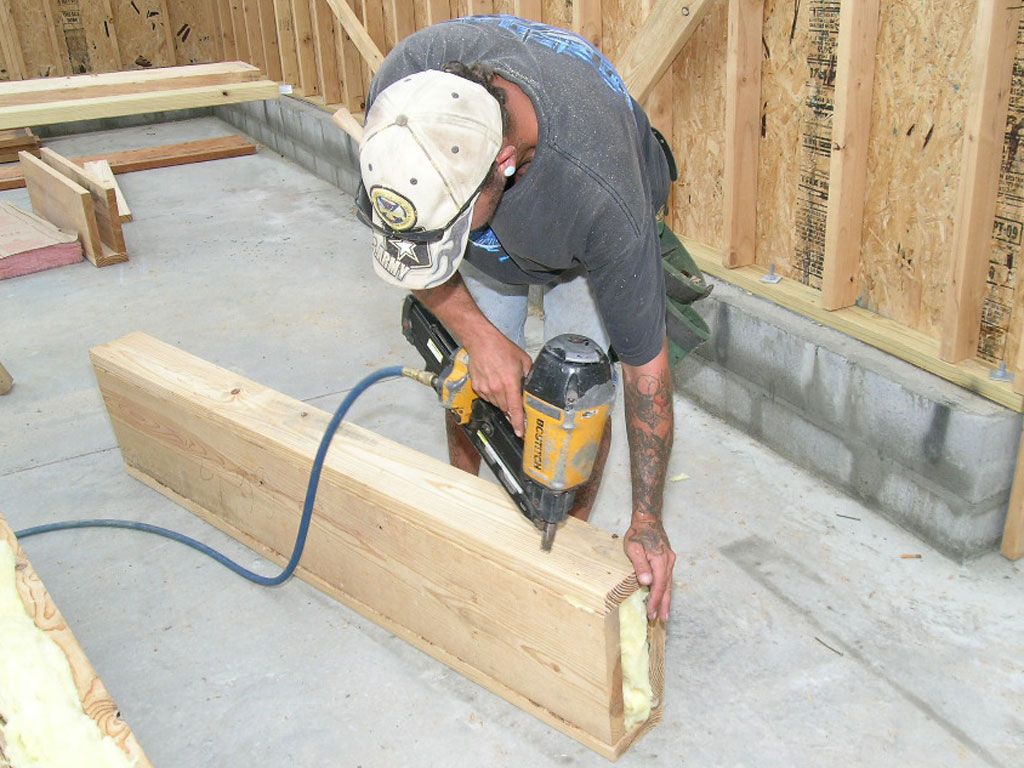

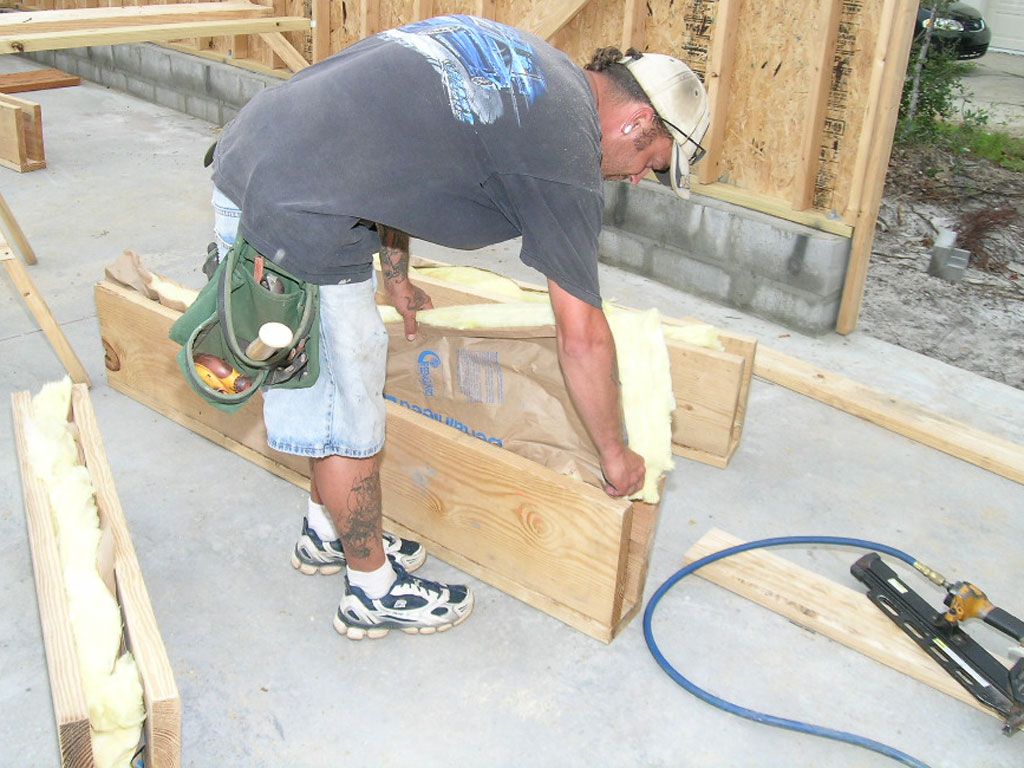

Wayne insulates the exterior window and door headers during fabrication and prior to installation in the wall. There's no way to insulate them once they've been assembled and installed. Most wood framed homes have these insulation voids above every window and door which add up to quite a bit of uninsulated wall space in the home.

Closing up the insulated header.

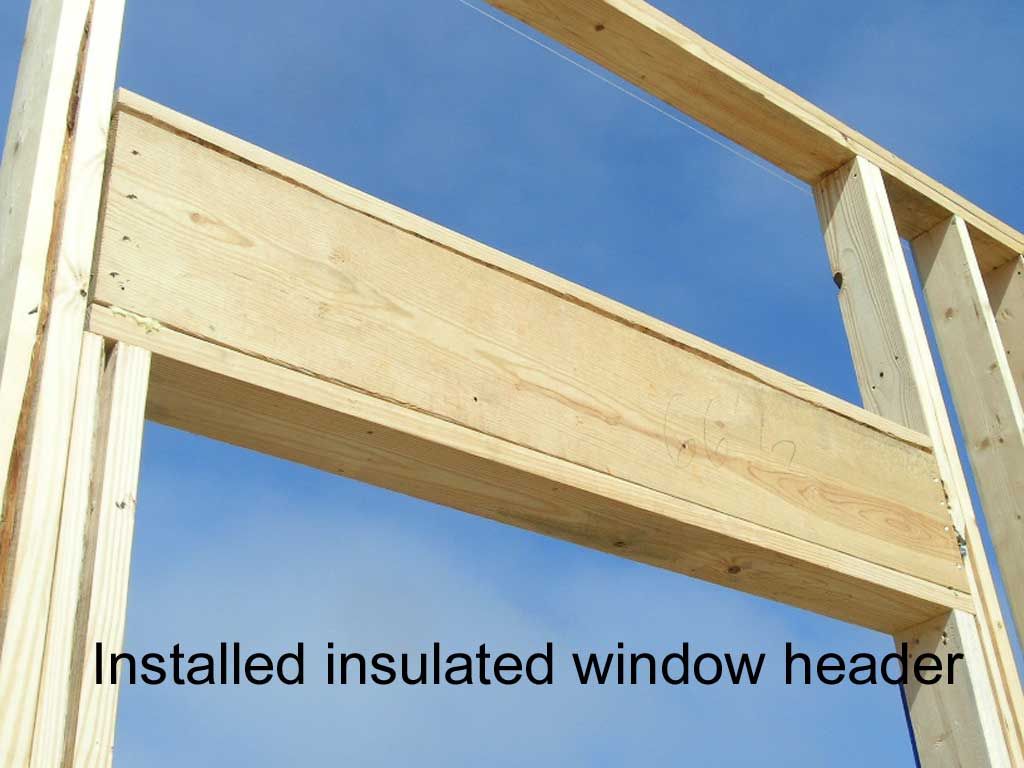

Here's how the installed header looks. As you can see, there's no way to insulate these enclosed spaces and there's enough of them in the average home to create a significant gap in the thermal envelope.

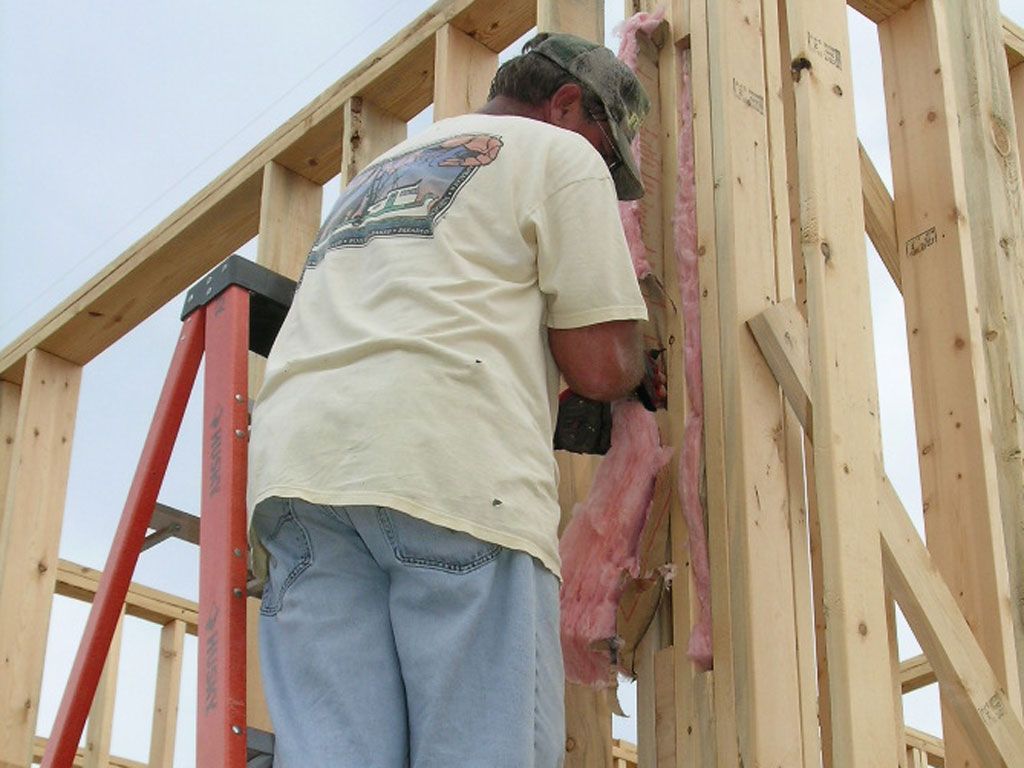

Ed insulates the exterior tees and corners which are another place that's impossible to insulate once the exterior sheathing has been installed.

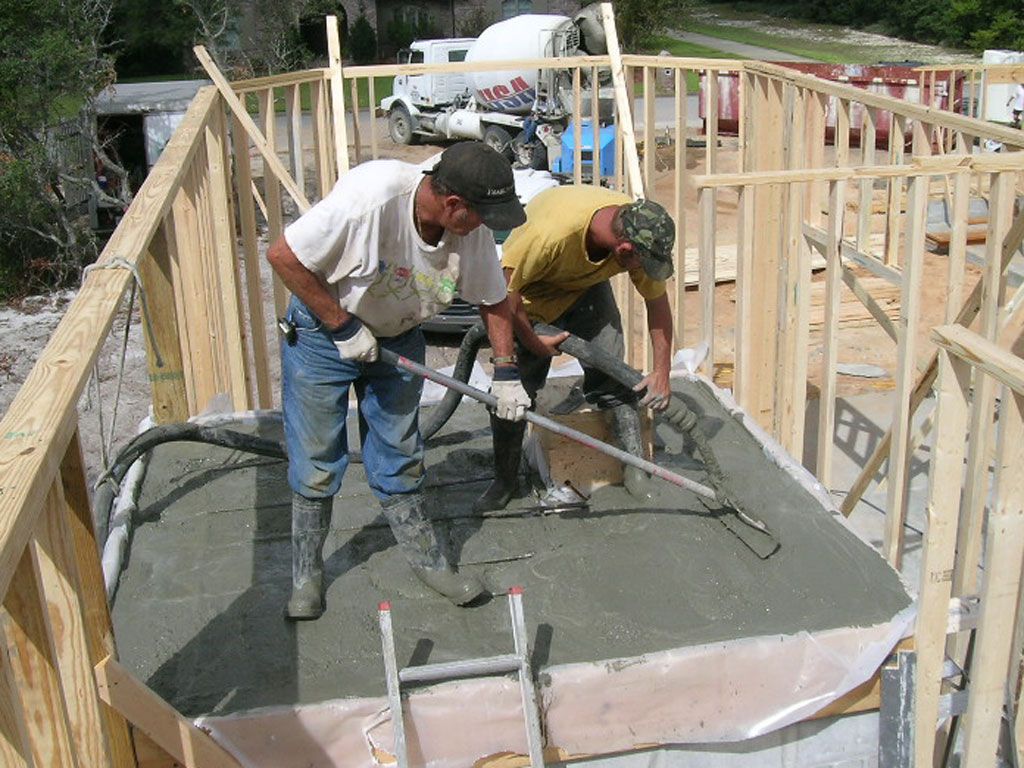

Pouring the lid on the safe room. Notice the steel cross bars. The box is for the ventilation ducts to enter the room.

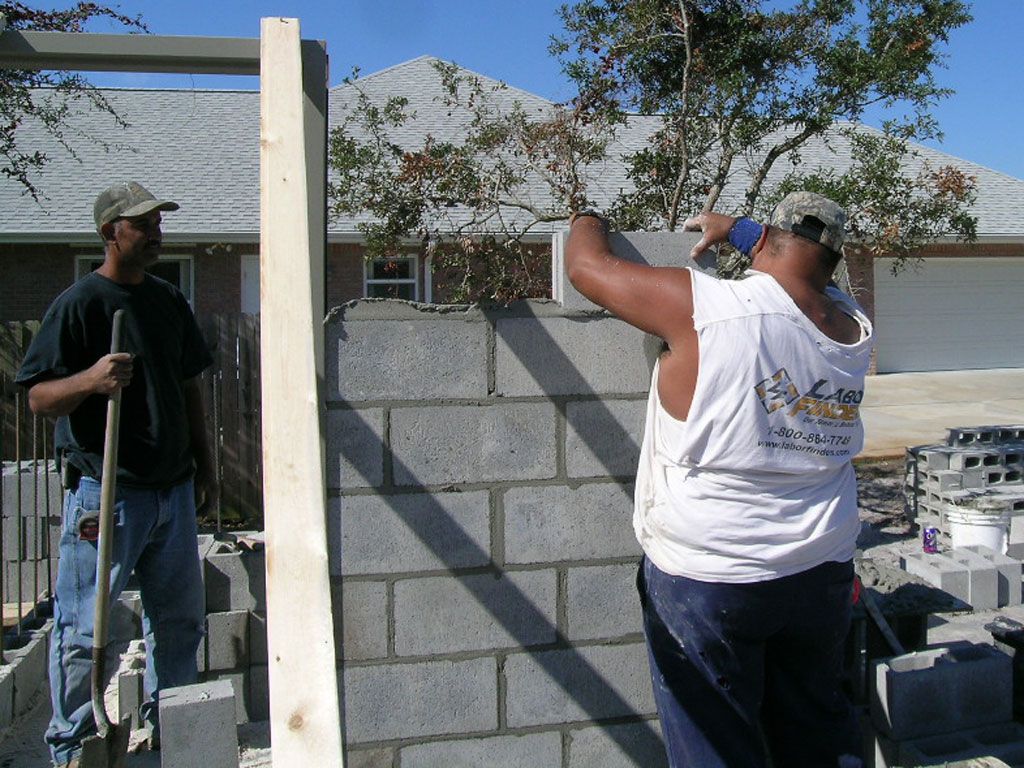

Joe laying up the block for the safe room.

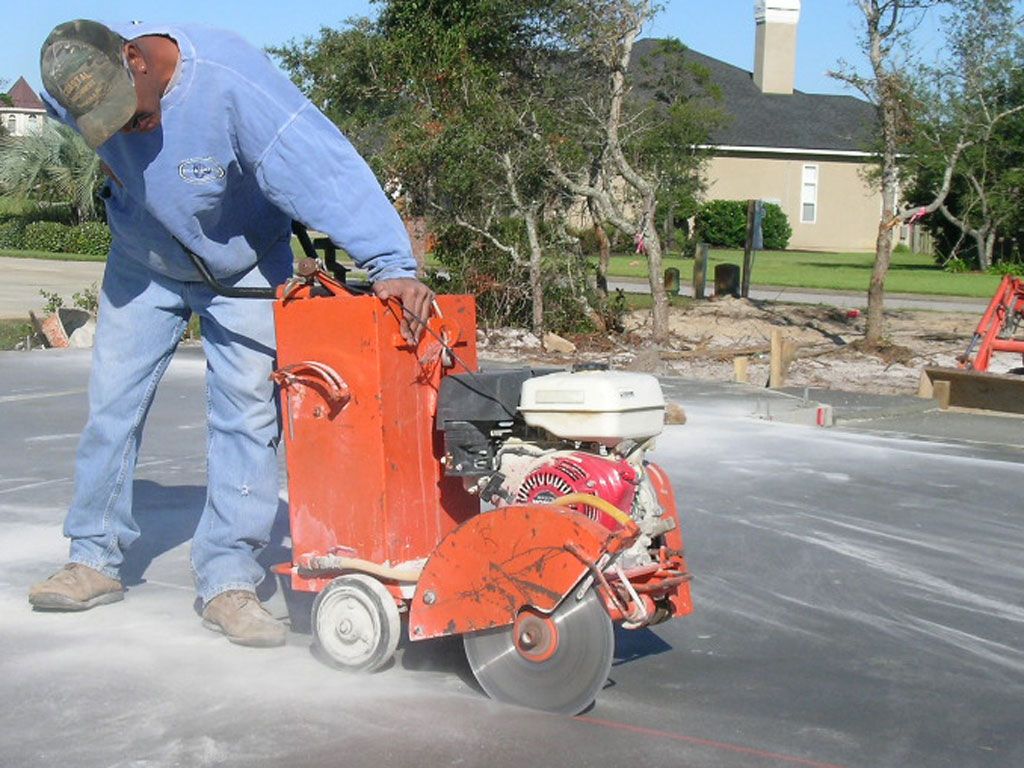

Junior cutting in the control joints with a diamond blade. These are 1" deep cuts in the concrete slab to allow the concrete to crack along designated lines as it shrinks. Without these joints the slab may crack in random areas and cause cracks in the tile. These control joints are bridged with flexible membranes before the floor tile is laid so that there can be further movement in the slab without cracking the tiles.

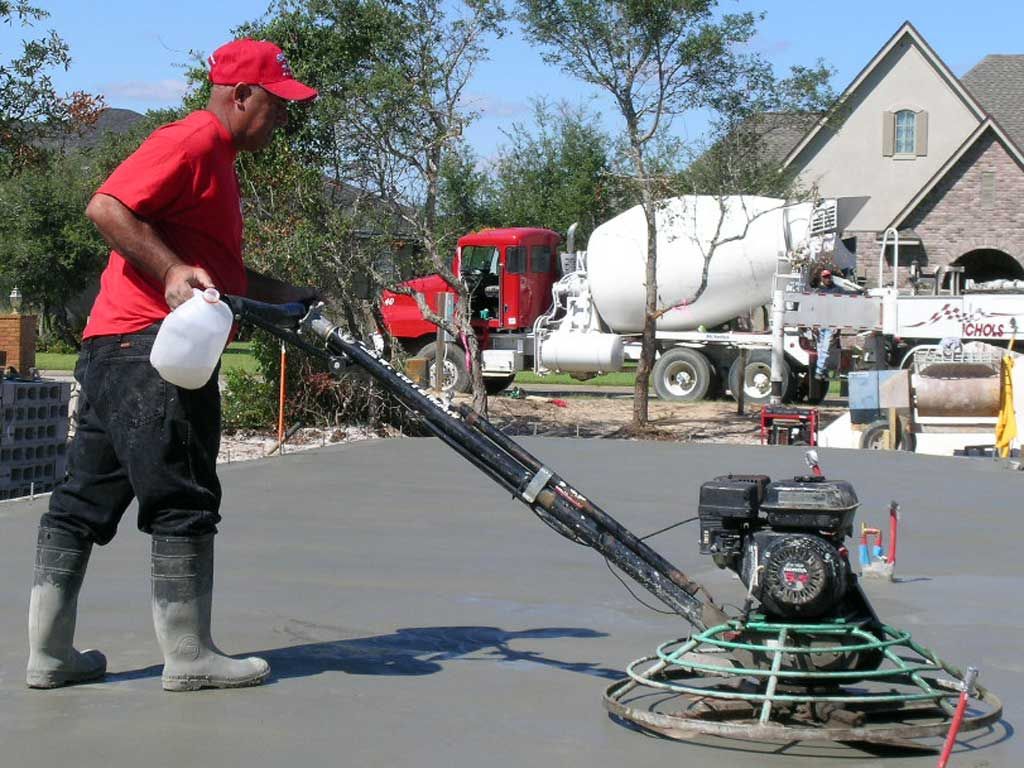

Gomez on the rotary trowel.

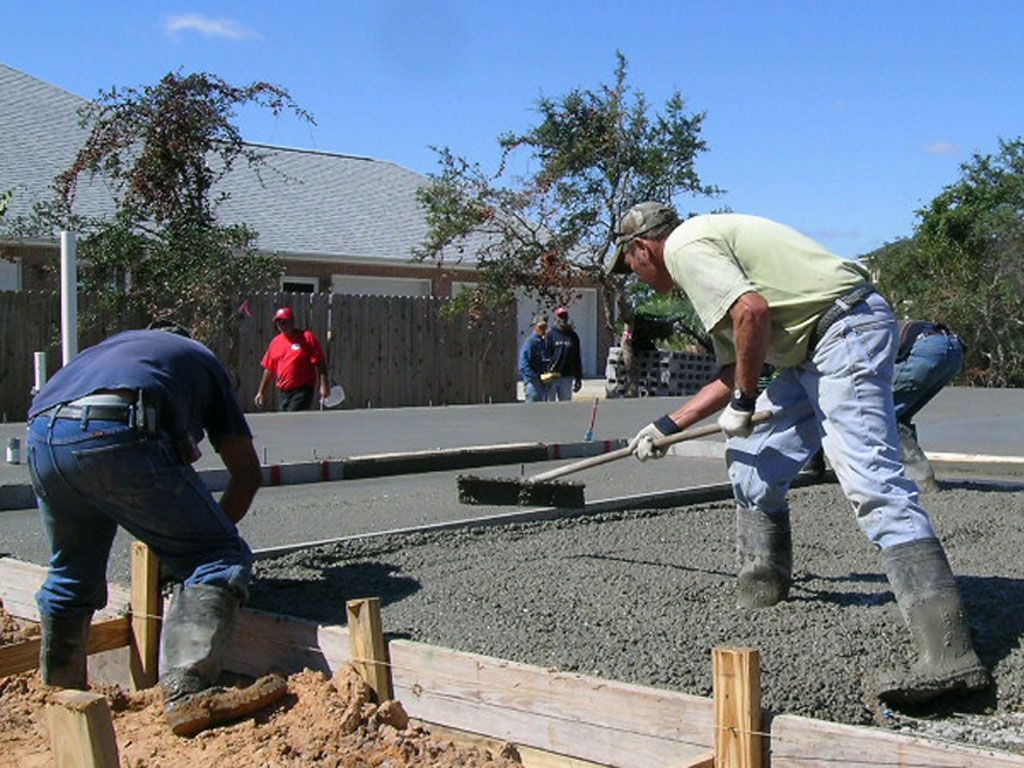

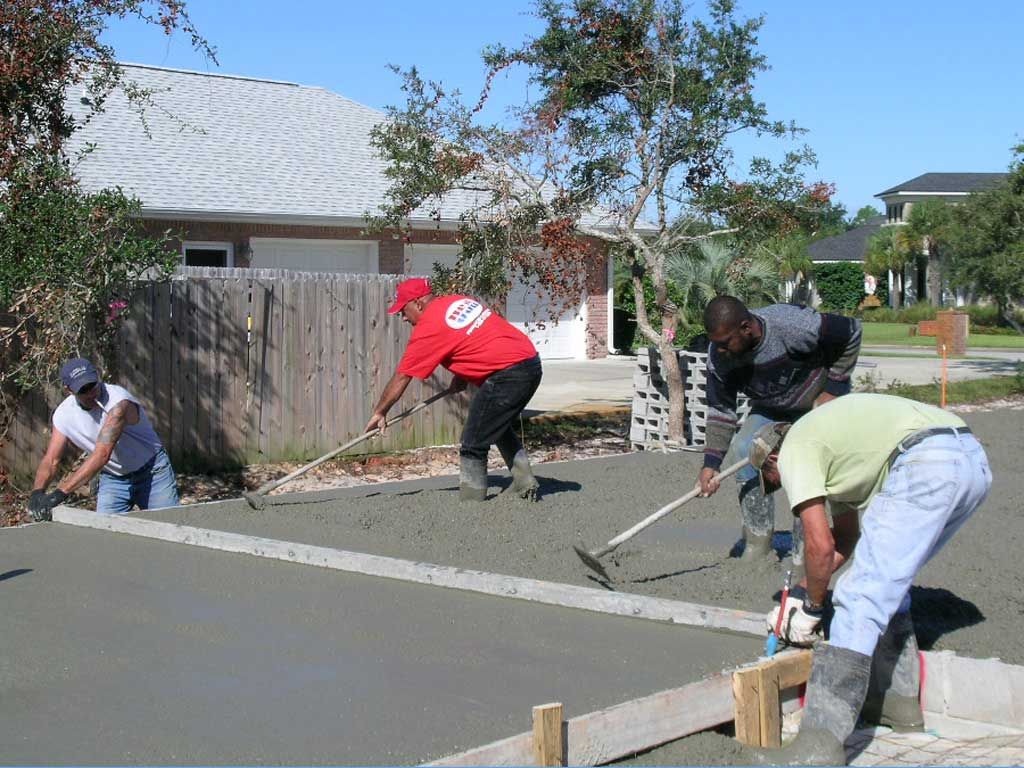

Screeding the concrete.

Junior placing the concrete with the boom pump.

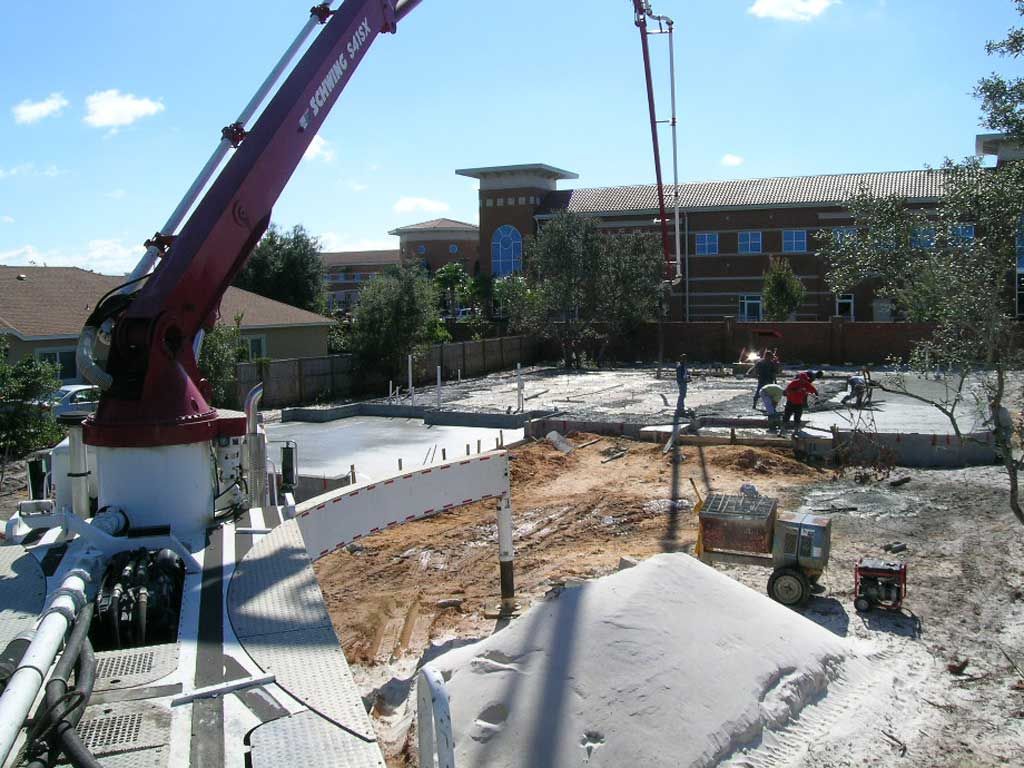

We used a 100' boom pump truck to reach back into the rear of the foundation.

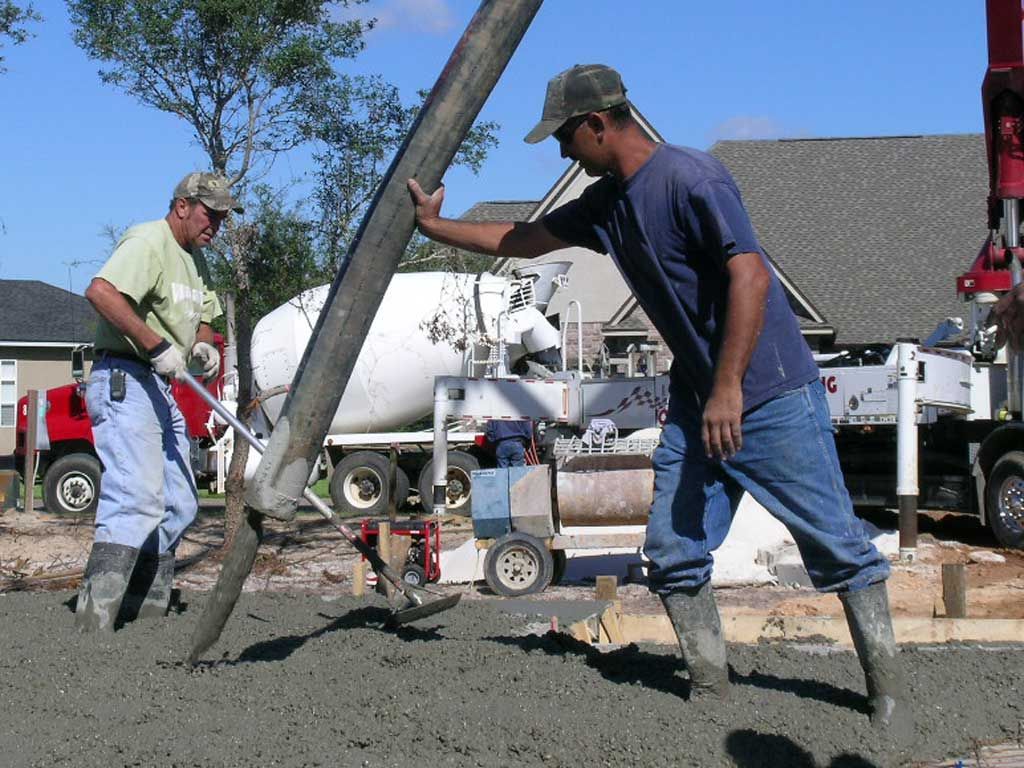

Matt filling the foundation.

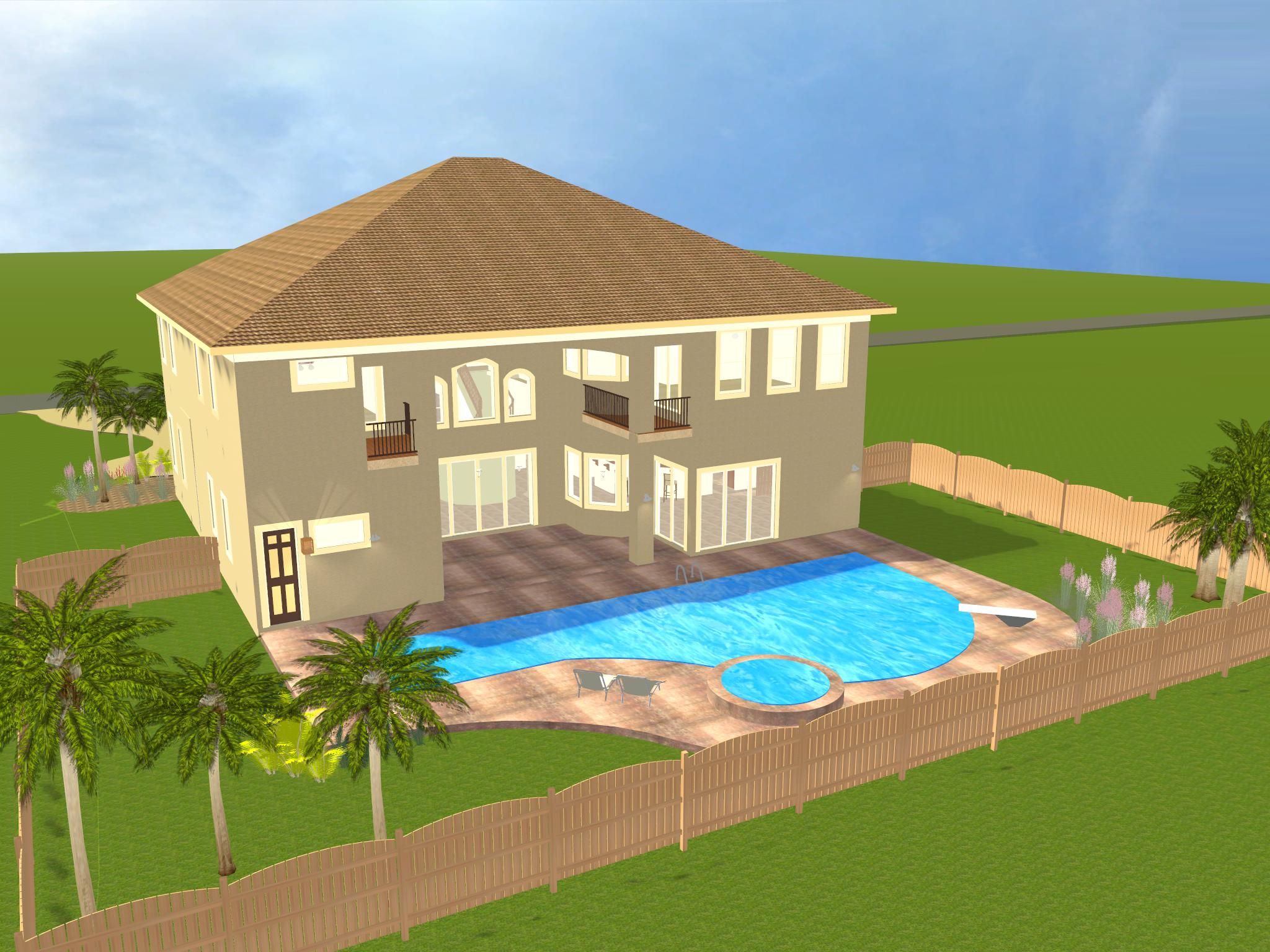

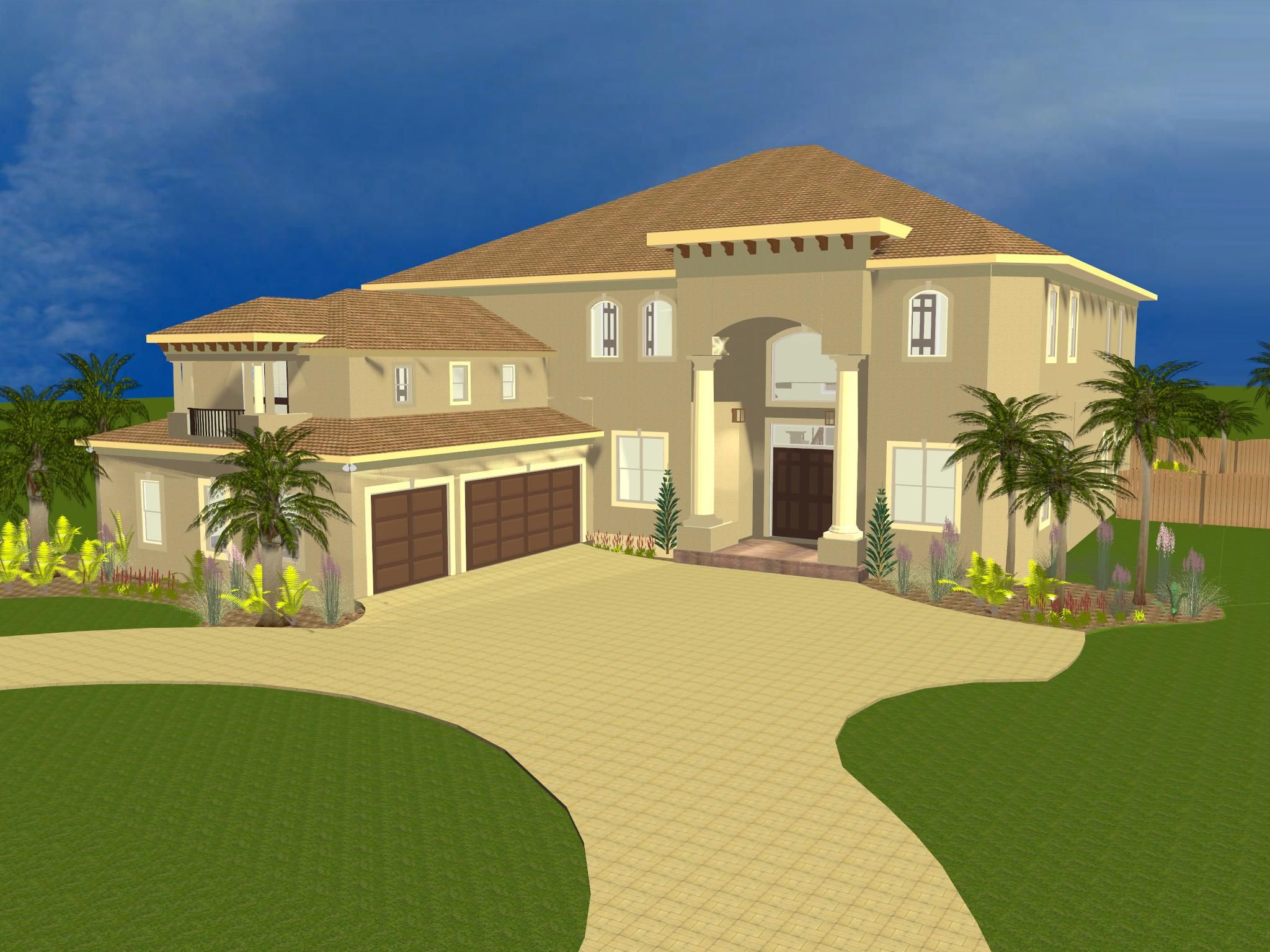

Computer model. This is what I started with.

Humming bird.
Kesler residence in Gulf Breeze by Acorn Fine Homes - Thumb Pic 1
Kesler residence in Gulf Breeze by Acorn Fine Homes - Thumb Pic 2
Kesler residence in Gulf Breeze by Acorn Fine Homes - Thumb Pic 3
artistic painting - Thumb Pic 4
 - Thumb Pic 5
 - Thumb Pic 6
 - Thumb Pic 7
 - Thumb Pic 8
 - Thumb Pic 9
air leakage test - Thumb Pic 10
 - Thumb Pic 11
 - Thumb Pic 12
 - Thumb Pic 13
 - Thumb Pic 14
 - Thumb Pic 15
 - Thumb Pic 16
 - Thumb Pic 17
 - Thumb Pic 18
 - Thumb Pic 19
 - Thumb Pic 20
 - Thumb Pic 21
 - Thumb Pic 22
 - Thumb Pic 23
 - Thumb Pic 24
Kesler stucco home in Gulf Breeze - Thumb Pic 25
 - Thumb Pic 26
 - Thumb Pic 27
 - Thumb Pic 28
 - Thumb Pic 29
 - Thumb Pic 30
 - Thumb Pic 31
 - Thumb Pic 32
 - Thumb Pic 33
 - Thumb Pic 34
 - Thumb Pic 35
 - Thumb Pic 36
 - Thumb Pic 37
Kesler stucco home in Gulf Breeze - Thumb Pic 38
 - Thumb Pic 39
 - Thumb Pic 40
 - Thumb Pic 41
 - Thumb Pic 42
 - Thumb Pic 43
 - Thumb Pic 44
 - Thumb Pic 45
 - Thumb Pic 46
 - Thumb Pic 47
 - Thumb Pic 48
 - Thumb Pic 49
 - Thumb Pic 50
 - Thumb Pic 51
 - Thumb Pic 52
 - Thumb Pic 53
 - Thumb Pic 54
 - Thumb Pic 55
 - Thumb Pic 56
 - Thumb Pic 57
 - Thumb Pic 58
 - Thumb Pic 59
 - Thumb Pic 60
 - Thumb Pic 61
 - Thumb Pic 62
 - Thumb Pic 63
 - Thumb Pic 64
 - Thumb Pic 65
 - Thumb Pic 66
 - Thumb Pic 67
 - Thumb Pic 68
 - Thumb Pic 69
 - Thumb Pic 70
 - Thumb Pic 71
 - Thumb Pic 72
 - Thumb Pic 73
 - Thumb Pic 74
 - Thumb Pic 75
 - Thumb Pic 76
 - Thumb Pic 77
 - Thumb Pic 78
 - Thumb Pic 79
 - Thumb Pic 80

Kesler residence

I'm building this 6087 Sf home for Dr. Roman Kesler, his wife Marina, and their little princess Ava. It may be more accurate to say I'm building it for Ava as she seems to have a lot more stuff than her parents. The Kesler's lived in a home that had 12' ceilings in Mississippi so now they feel cramped in their current home with 10' ceilings. See how easy it is to get spoiled. This home has 12' first floor walls and 10' second floor walls and is one of the first homes I designed using Softplan's 3D modeling software.

Les White, Acorn Construction General Contractor, #RG0055853
